Toyota Traigo 80
Price excl. VAT
Print
INFO
Product group
Electric forklift trucks
Brand / model
Toyota Traigo 80
Year of manufacture
2016
Country
Hungary
Mascus ID
275C7513
PRICING
Choose currency
DETAILS
Number of wheels
4
Maximum lift capacity
5,000 kg
Distance of centre of gravity
600 mm
Maximum lift height
4,000 mm
Free lift
150 mm
Drive height
2,250 mm
Lift mast
Duplex / free lift
Fork carriage
Integral sideshift
Fork length
1,200 mm
Cabin
Closed cabin
Tyre type
Super elastic
Transmission
Electric drive
Engine
Electric
Engine output
25.2 kW (34.3 hp)
Engine manufacturer
Toyota (Electric drive motor)
Battery brand
Exide
Tyre brand
Marangoni
Battery voltage
80 V
Battery capacity
840 Ah
Charger manufacturer
Exide
Charger voltage
380 V
Charging current
13 A
No. of steering wheels
2
No. of drive wheels
2
Transport weight
6,740 kg
Transport dimensions (LxWxH)
410014402.25 m
Front tyre size
28×12.5-15
Rear tyre size
23×9-10
Other information
Toyota Traigo 80 Electric Forklift 5,000 kg Capacity Year 2016
Overview:
This high-performance Toyota Traigo 80 – 8FBMT50 is a robust and reliable 4-wheel electric forklift with a lifting capacity of 5,000 kg at a 600 mm load center. Designed for intensive industrial and logistics operations, it combines strong performance, operator comfort, and safety in one compact and efficient machine. With only 850 operating hours, this forklift is in very good working condition and ready for immediate use.
Technical Specifications:
Make: Toyota
Model: Traigo 80 – 8FBMT50
Year: 2016
Power: Electric (Battery 80V / 840 Ah)
Lifting capacity: 5,000 kg
Load center: 600 mm
Lifting height: 4,000 mm
Fork length: 1,200 mm (with optional 2,000 mm extension forks)
Travel speed (with/without load): 18 / 18 km/h
Drive motor: 25.2 kW
Lift motor: 25.5 kW
Dimensions (L × W × H): 4.10 × 1.40 × 2.25 m
Machine weight: ~6,740 kg
Performance & Features:
Mast type: FSV4000
Steering: Power steering with adjustable tilt steering column and memory function

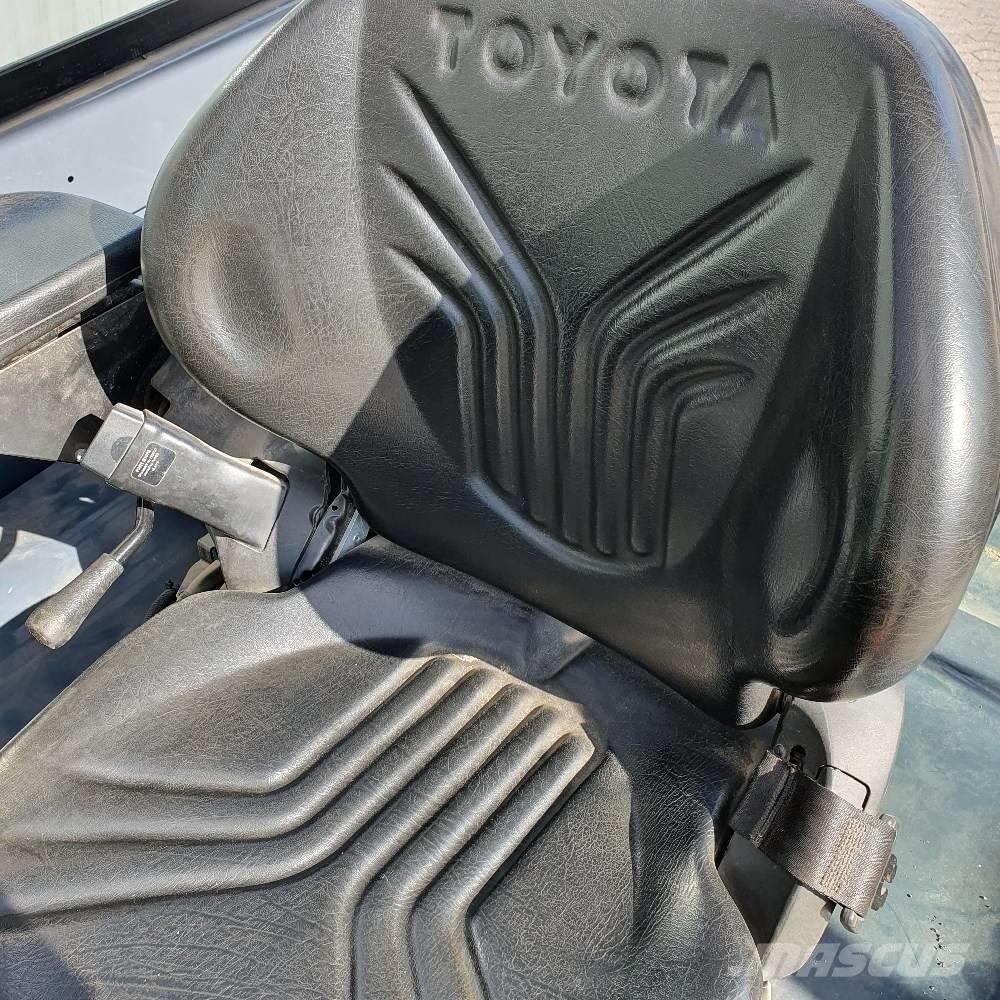

Seat: Grammer full-suspension seat with premium upholstery, adjustable in three ways for operator comfort
Controls: Seat-mounted minilevers with direction selector integrated in the armrest
Safety Systems:
Toyota SAS (System of Active Stability)
OPS (Operator Presence System)
Automatic parallel fork alignment
Automatic tilt limiter
Steering axle stabilization and synchronized steering knob
Lighting: Full LED lighting package (front/rear work lights, indicators, brake lights, reversing lights)
Cabin: Toyota original cab with overhead guard, including heater with defroster
Accessories:
Integrated fork positioner with side shift (ELM 3IFPF)
Central water filling system for battery
Exide HF charger (380V, ~12h charging time)
Panorama rear-view mirror
Digital multi-display with steering wheel position indicator
Battery and charger included
Condition & Notes:
Visually inspected and technically in very good condition (4/5)
Compact overall height of only 2.25 m, allowing operation inside containers
Owner will install rear window before delivery
Additional 2,000 mm fork extensions included
Additional Information:
This Toyota Traigo 80 is a premium-class electric forklift built for demanding warehouse, logistics, and industrial environments. With low hours, strong lifting power, advanced safety features, and excellent operator comfort, it is an ideal solution for companies looking for a reliable and efficient material handling machine.
