Prinoth PANTHER T16

Price excl. VAT

POA

Compnay LOGO
Images24
Prinoth PANTHER T16 Tracked dumpers
Prinoth PANTHER T16 Tracked dumpers
Prinoth PANTHER T16 Tracked dumpers
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product group
Tracked dumpers
Brand / model
Prinoth PANTHER T16
Year of manufacture
2017
Hours of use
2,682 h
Machine location
Asbury, New Jersey
Country
United States
Mascus ID
A370441E

DETAILS

Internal stock no.
6429D
Manufacturing / Serial number
935410019
Other information

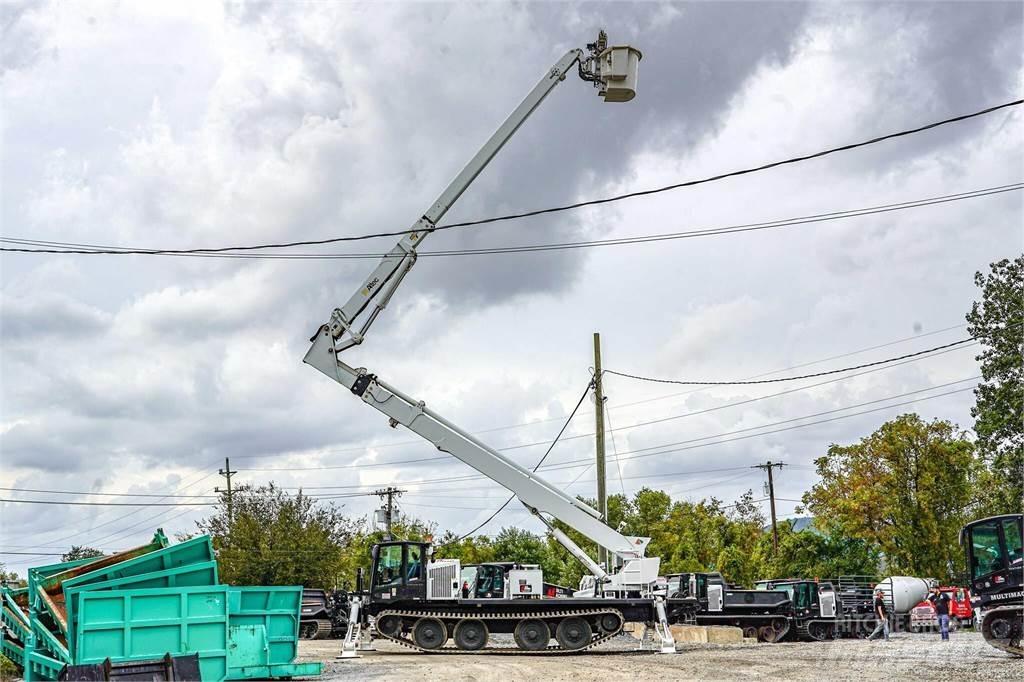

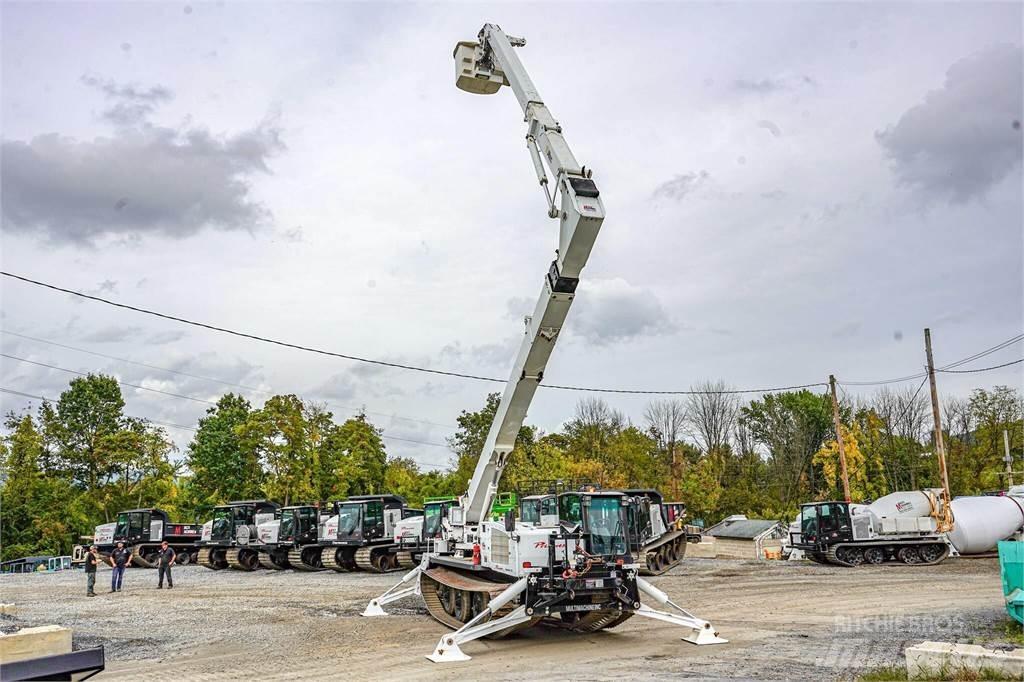

Description: The Prinoth Panther T16 is an extremely versatile crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. The vehicles can be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is outfitted with a Altec AH125, 125’ Articulating & Telescopic Material Handling Platform. If you have any questions regarding purchase, rental, or anything else, don't hesitate to call Multi Machine. Machine Specifications Payload: 33,500 lbs. Maximum Speed: 8 mph Ground Pressure (Empty): 3.11 psi Ground Pressure (Loaded): 6.87 psi Engine: Caterpillar C7.1 Acert Horsepower ... 2200 rpm: 275 hp Torque ... 1400 rpm: 927 lb-ft Fuel Tank Capacity: 86 Gallons Uphill Gradeability: 31° Side Hill Gradeability: 21.8° Height: 11’11 Ground Clearance 20 Material Handler Specifications Ground to Bottom of Platform 118 ft (36.0 m) Working Height 123 ft (37.5 m) Maximum Reach From Centerline 50.4 ft (15.4 m) (At Working Height) 75.0 ft (22.9 m) Platform Capacity Fiberglass / Aluminum 1300 lb / 2100 lb (590 kg / 952 kg) Maximum Jib Capacity 1500 lb (680 kg) Maximum Combined Capacity, Platform & Jib 2100 lb (952 kg) Lower Boom Articulation 0 to 87° Lower Boom Telescopic Extension 40.0 ft (12.2 m) Upper Boom Articulation 0 to 160° Upper Boom Telescopic Extension 7.0 ft (2.1 m) Stowed Travel Height* 13.4 ft (4.1 m) Upper Boom Isolation (Minimum) 13.2 ft (4.0 m) Max. Boom Dielectric Rating** 500 kV Rotation Continuous Material Handler Features • Articulating and Telescoping Lower and Upper Booms • 2100 lb (953 kg) Total Boom-tip Capacity in Any Boom Position • Fiberglass Platform » 1300 lb capacity 40 x 60 x 42 in » End Mounted Rotating Platform • Material Handling System » Up to 1500 lb (680 kg) Capacity in Any Boom Position » Hydraulically Extendible and Articulating Jib » 180º Manually Rotating Jib/Winch Assembly • Automatic Hydraulic Platform Leveling • Category A Upgradeable - Standard Configuration Includes: » Lower Test Electrode / Conductive Shield » Pre-wired for Leakage Monitor • Radial Outriggers • Two Hydraulic Tool Circuits at Boom Tip • Outrigger Boom Interlock System • Secondary Stowage System • Outrigger Motion Alarm • Back Up Alarm ROPSType: EnclosedShow more

Multi Machine, Inc.

2 Vliet Farm Rd. O8802 Asbury New Jersey United States
