Sany STH1056A

Price excl. VAT

POA

Compnay LOGO
Images3

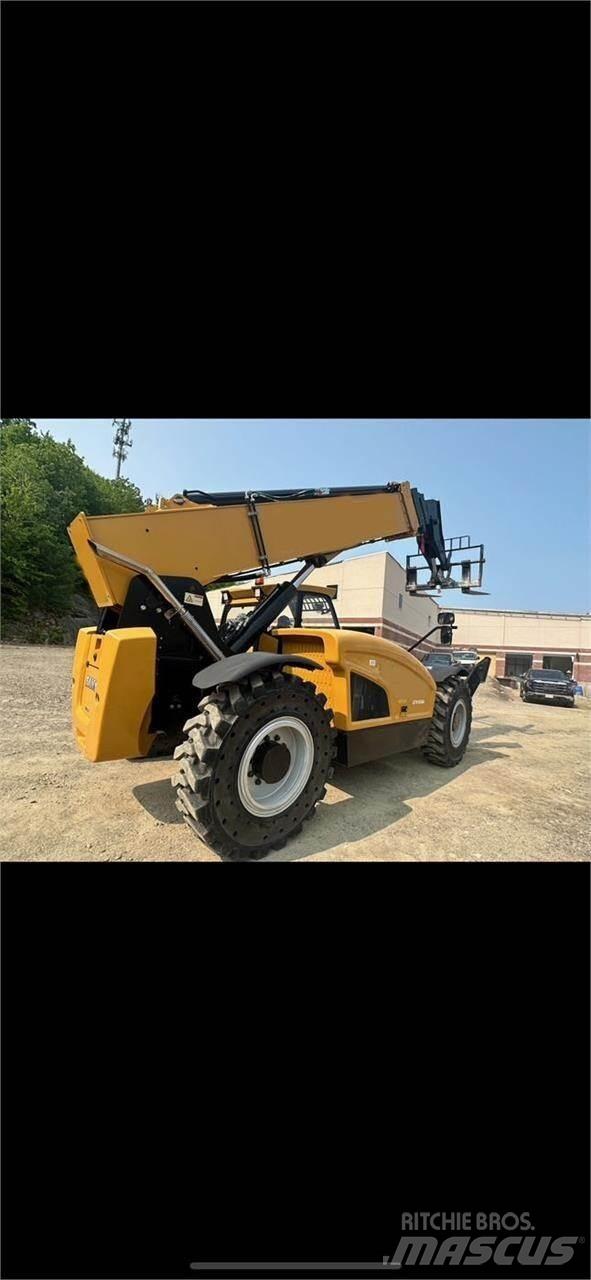

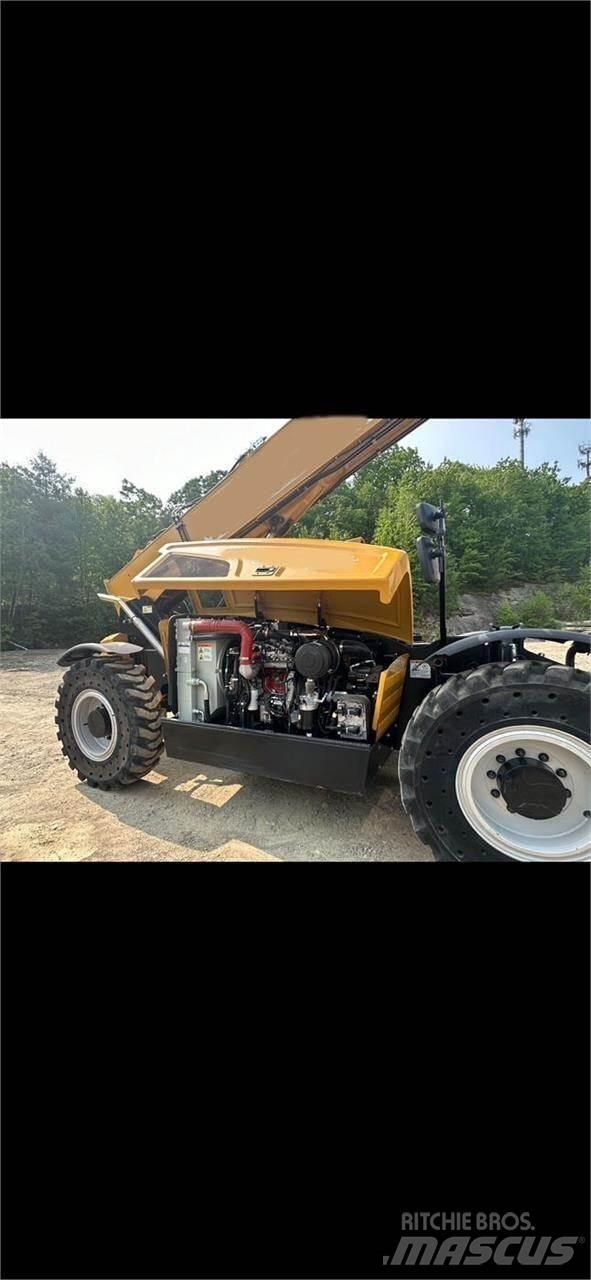

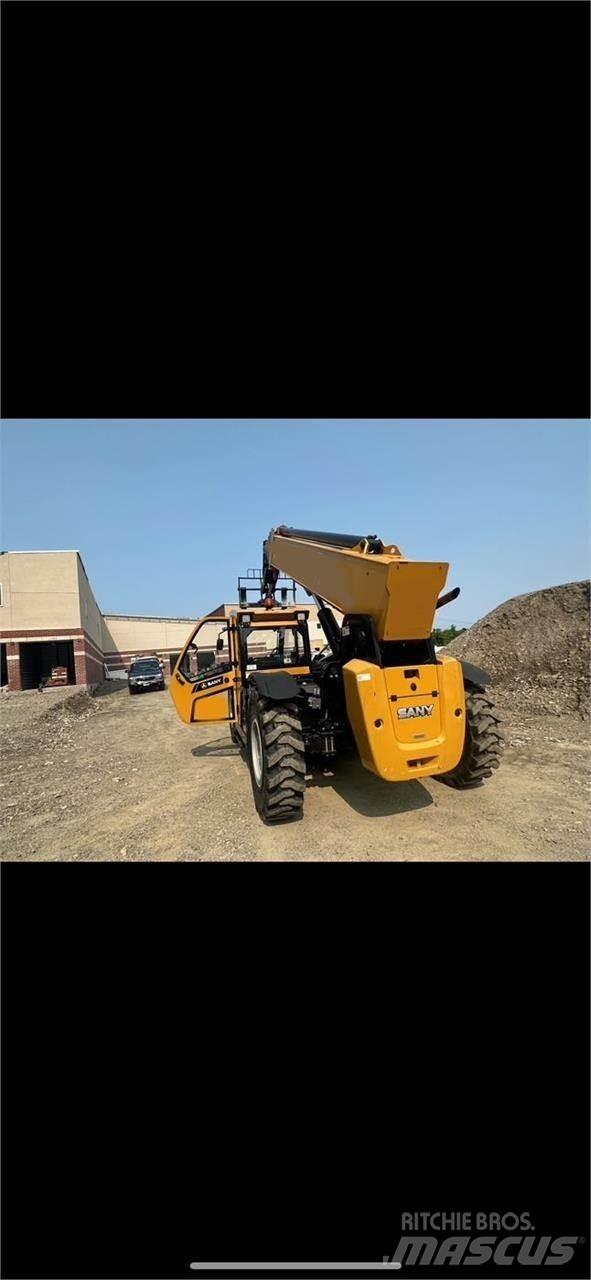

Sany STH1056A Telescopic handlers
Sany STH1056A Telescopic handlers
Sany STH1056A Telescopic handlers
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product group
Telescopic handlers
Brand / model
Sany STH1056A
Year of manufacture
2021
Hours of use
500 h
Machine location
Tulsa, Oklahoma
Country
United States
Mascus ID
AEAA6947

DETAILS

Engine output
95.6 kW (130 hp)
Other information
Description: (6) Used SANY America Telehandler model STH1056A (10,000lb Capacity) with all Standard equipment Spec’s: • MAXIMUM LIFT HEIGHT 56’ 2” • MAXIMUM FORWARD REACH 42’ • HEIGHT, STOWED 8’ 4” • LENGTH, STOWED (WITHOUT FORKS) 20’ • WIDTH 8’ 5” • WHEELBASE 11’ 5” • GROUND CLEARANCE (CENTER) 1’ 6” • GROUND CLEARANCE (AXLE) 1’ 6” • WEIGHT 33,290 lbs. • MAXIMUM LIFT CAPACITY 10,000 lb. 4 536 kg • LIFT CAPACITY AT MAXIMUM HEIGHT 5,000 lb. 2 267 kg • LIFT CAPACITY AT MAXIMUM REACH 3,000 lb. 1 361 kg • BOOM (RAISE/LOWER) 14 sec 11 sec • BOOM (EXTEND/RETRACT) 16 sec 15 sec • FRAME LEVELING +/- 10 degrees • MAXIMUM DRIVE SPEED 20 mph 32 kph • OUTSIDE TURNING RADIUS (4WS) 14’ 1” 4.30 m • AUXILIARY HYDRAULIC FLOW 17 GPM 63 L/min • AUXILIARY HYDRAULIC PRESSURE 2,466 psi 17 MPa • Cushioned Solid Tires (400/75-28) • POWER 130 hp • TORQUE 360 lbf • ELECTRICAL SYSTEM 24 volt • HYDRAULIC TANK CAPACITY 33 gal • HYDRAULIC SYSTEM CAPACITY (WITH TANK) 42 gal • FUEL TANK CAPACITY 36 gal Standard Features: • Cummins QSF 3.8L 130HP w/ DANA 1120 4-speed Powershift • Open Operator Cabin • DANA Powershift Transmission • Conveniently located seat side controls • Dana Planetary Axles • Intuitive Display Panel • Load Sensing Kawasaki Hydraulic Pump • Rubber Mounts to reduce Cabin Vibration • Parker Main Hydraulic Valve Handrails • Single Joystick Control • English Operator's Manual • 24V Electrical System • Boom Tip Auxiliary Hydraulics • Boom Mounted Lifting Hook • Cushioned Solid Tires (400/75-28) • Ultra-Bright LED Work lights (Front/Rear/End of Boom) • Flashing Beacon • Boom Mounted Lifting Hook • Wide Angle Rear Camera with Integrated Radar and Object Detection • Full Fender Package (All 4 Wheels) • Customer Care Package I set full filters set for general maintenance and special tool Kit, and all Manuals • Warranty Factory 1 year or 1000 hours (Whichever comes first) Options: • 60” Carriages • Forks 60” • Fully Enclosed Cab with Heat/Air Conditioning AirConditioning: Yes BrakeType: Yes Coupler: Yes EngineMake: CUMMINS FrontFenders: Yes Heater: Yes Monitor: Yes ROPSType: Enclosed TransmissionType: Powershift QuickAttach: Yes Outriggers: Yes NumForwardSpeeds: 4 NumFenders: 4Show more

CraneCo Crane Sales Inc.

4601 West 61st 74132 Tulsa Oklahoma United States
