SCM class s 630

Price excl. VAT

Compnay LOGO
Images17

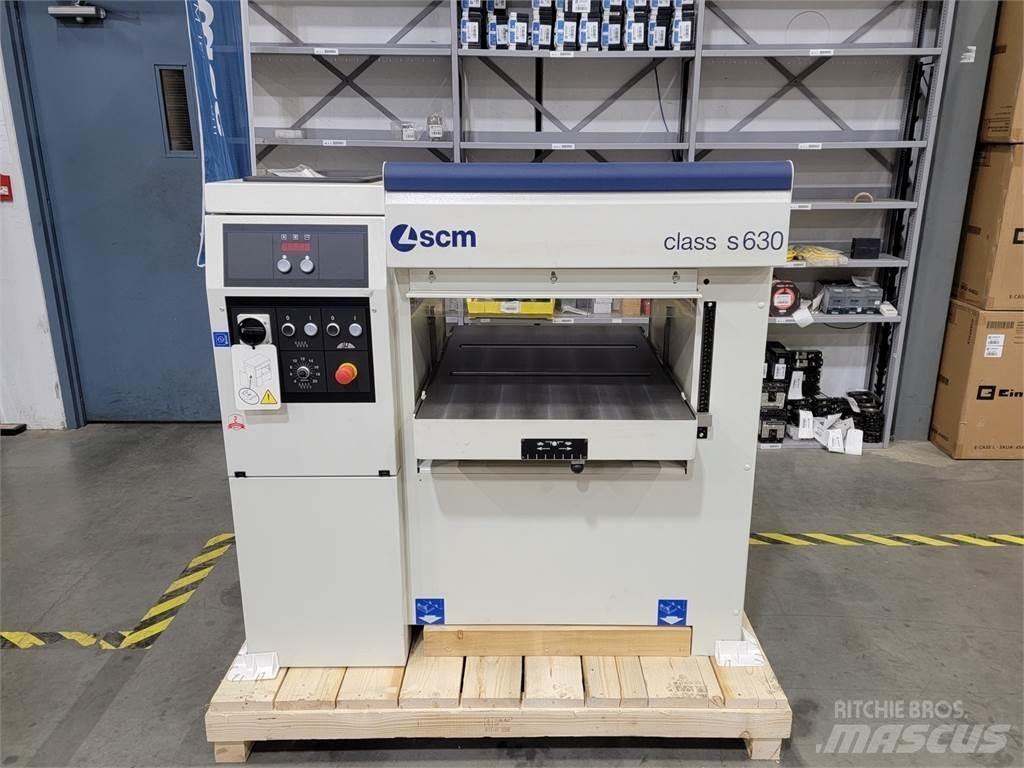

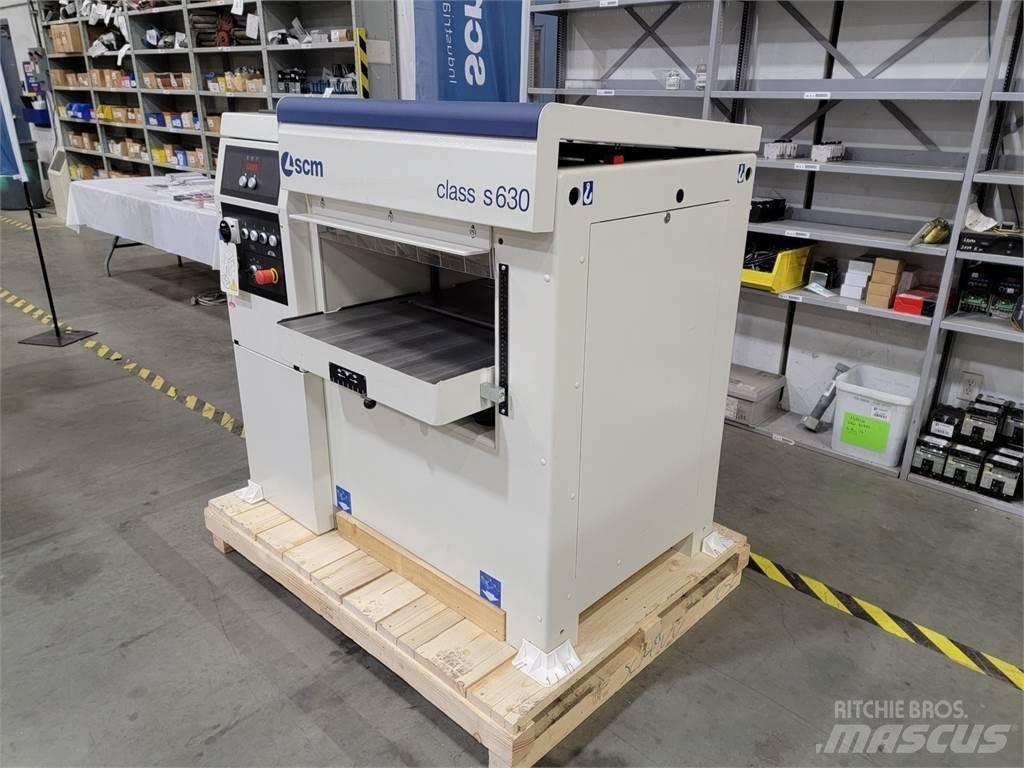

SCM class s 630 Planers
SCM class s 630 Planers
SCM class s 630 Planers
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product group
Planers
Brand / model
SCM class s 630
Condition
Used
Machine location
Langley, British Columbia
Country
Canada
Mascus ID
A9FBC3CB

PRICING

Choose currency

DETAILS

Internal stock no.
135185
Other information
class s 630 Thicknessing Planer w/ Xylent Spiralknife Cutterblock Title: class s 630 Thicknessing Planer w/ Xylent Spiralknife Cutterblock SKU: 135185 Model: class s 630 Condition: New GeneralHorsepower:15hp Max. Workpiece Width:630 mm / 24.8" Max. Workpiece Thickness:300 mm / 11.8" Type:Xylent ElectricalVoltage:600volts Phase:3-phase Dimensions: 55.00 (H) x 44.00 (W) x 51.00 (L) inches "Xylent" Spiralknife Cutterblock with 3 Series of Knife Complete with: - No. 105 plates, 15x15x2.5 mm with 4 self-locking and self-centering screw knives - No. 1 dynamometric key for the correct and safe use of the locking - No. 2 inserts for the dynamometric key Motor Power: 11 kW / 15 hp ... 60 Hz, complete with automatic star-delta start Worktable dimension: 630 x 1000 mm Working height (min/max): 3/300 mm Max. stock removal: 8 mm Min. working length: 260 mm Min. working width: 10 mm Cutterblock speed: 4500 rpm Cutterblock diameter: 120 mm Adjustable feed speed: 4-20 m/min Exhaust outlet diameter: 150 mm Standard Equipment and Options - Powered lifting of thicknessing table, 2 speeds with micrometric adjustment - Electronic digital readout of working height with decimal control - Variable feed speeds of workpiece, electronically controlled by means of inverter from 4 to 20 m/min - Thicknessing table with vertical moving by means of 4 steel screws - 1st front roller in helicoidal steel - 2 (two) outfeed top feed roller with rubber coating - Interchangeable feed rollers - Cutterblock and knife fitting gibs with technical specs. and instructions engraved on same with knife-setting device Additional Features - Thicknessing table with 2 idle rollers - First sectional feed roller in steel alternative to the STD toothed roller - Xylent maintenance kit - 10 spare inserts kit (15x15x2.5) for Xylent spindle - Seaworthy packing [PDF Brochure](... Footprints](...Show more
