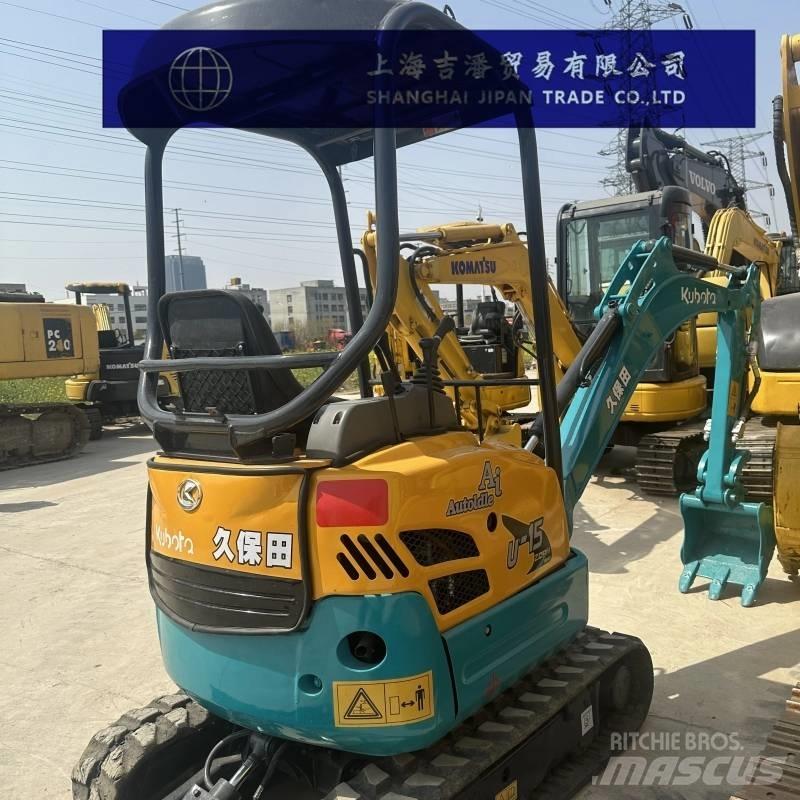

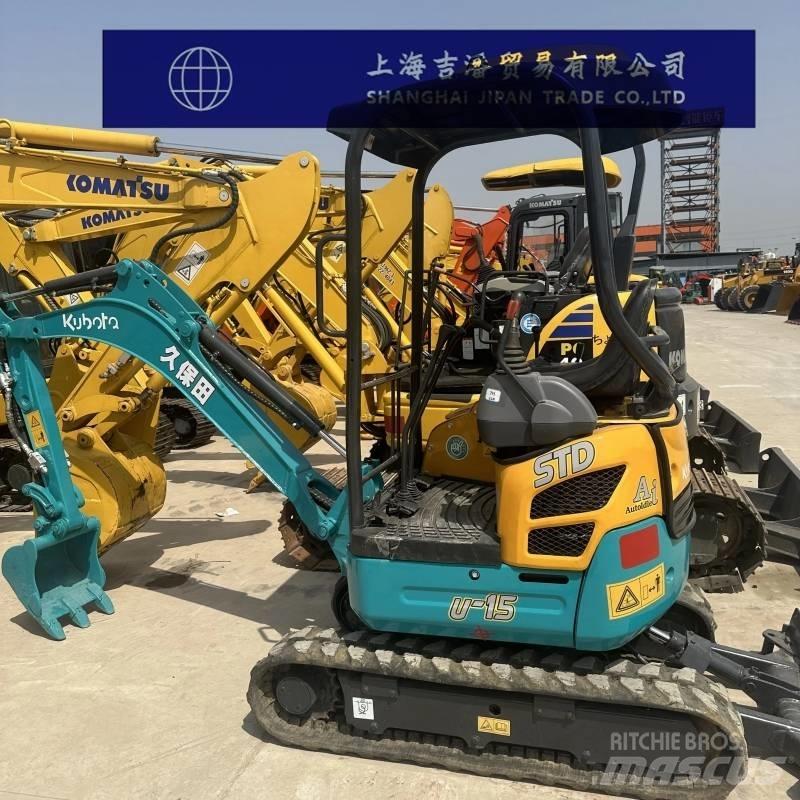

Kubota U 15

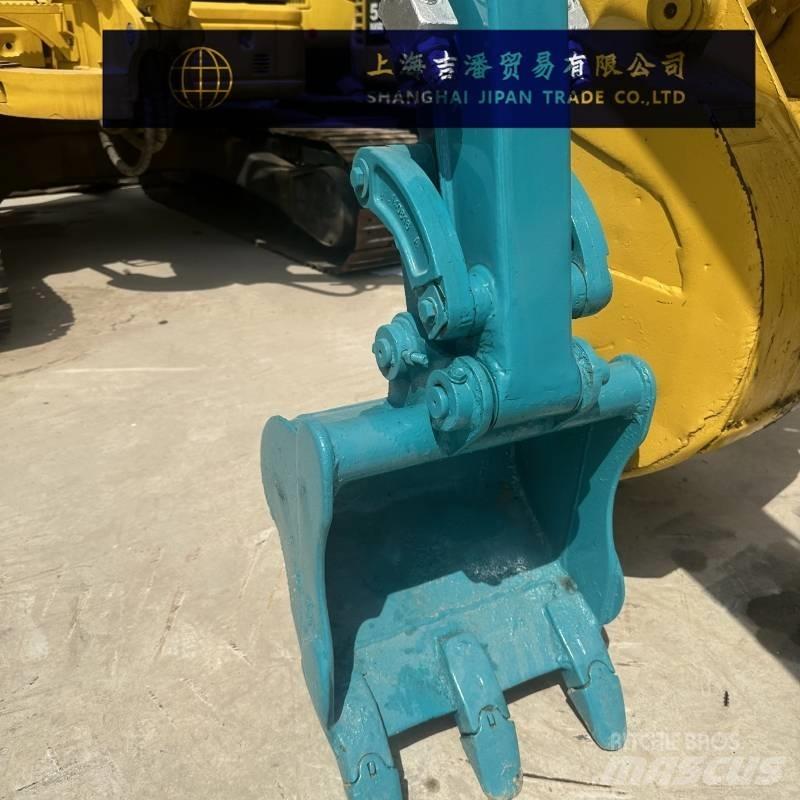

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Overall machine parameters Operating weight: 1570kg. Length: 3.96 meters. Width: 1.38 meters. Height: 2.35 meters. Minimum ground clearance: 145 millimeters. Tail turning radius: 620 millimeters. Track length: 1585 millimeters. Track width: 230 millimeters. Track center distance: 760-1010 mm. Wheel spacing: 1230 millimeters. Job performance parameters Bucket capacity: 0.04 cubic meters. Maximum excavation radius: 3,900 millimeters. Maximum excavation depth: 2310 millimeters. Maximum excavation height: 3,540 millimeters. Maximum unloading height: 2440 millimeters. Maximum vertical excavation depth: 1910 millimeters. The maximum digging force of the bucket: 15.2kN (1550kgf). Rotational speed: 8.7 revolutions per minute. Walking speed (high/low) : 4.3/2.2 kilometers per hour. Climbing ability: 30°. Power system parameters Engine model: Kubota water-cooled three-cylinder D782-EBH-4. Rated output power: 9.6 kilowatts (13 horsepower) /2300 revolutions per minute. Total displacement: 0.778 liters (778 milliliters). Fuel tank capacity: 18 liters. Parameters of the hydraulic system Hydraulic pump types: variable pump + gear pump + pilot gear pump. The maximum flow rate of the main pump is 16.6 liters per minute. Walking motor type: 2-speed plunger motor. Rotary motor type: Rail motor. Working pressure of the hydraulic system: 15.5MPa
