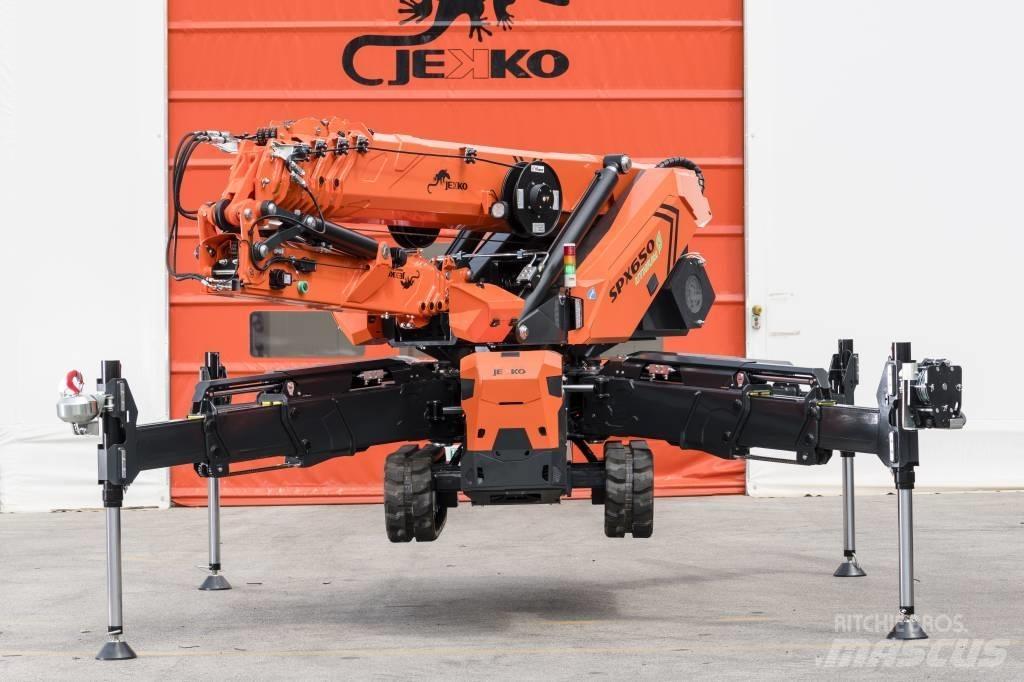

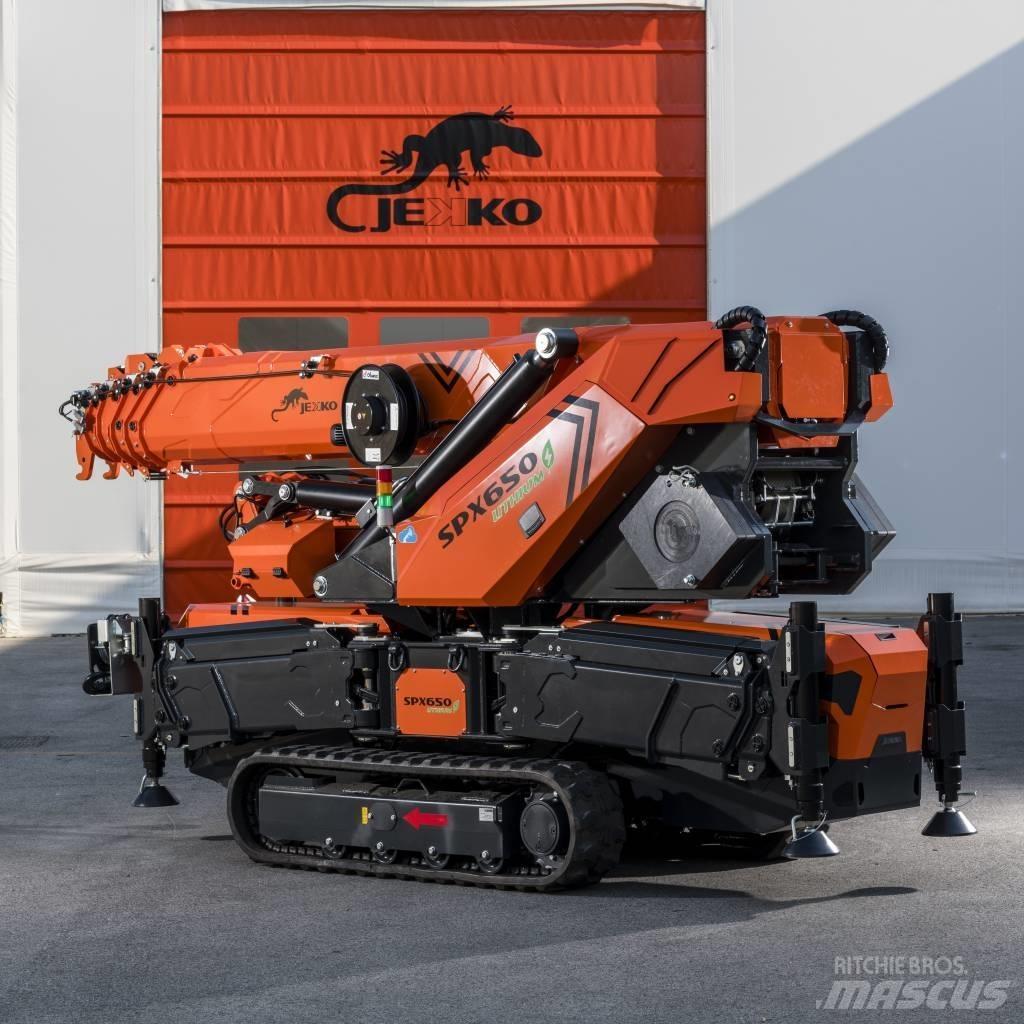

Jekko SPX650CDH
Price excl. VAT
POA
Print
INFO
Product group
Mini cranes
Brand / model
Jekko SPX650CDH
Year of manufacture
2025
Condition
Demo
Country
Poland
General grade
1
2
3
4
5
Mascus ID
0C3802F8
DETAILS
Amount of previous owners
1
Gross Weight
6,000 kg
Maximum lift capacity
5 ton
Maximum lift height
23.6 m

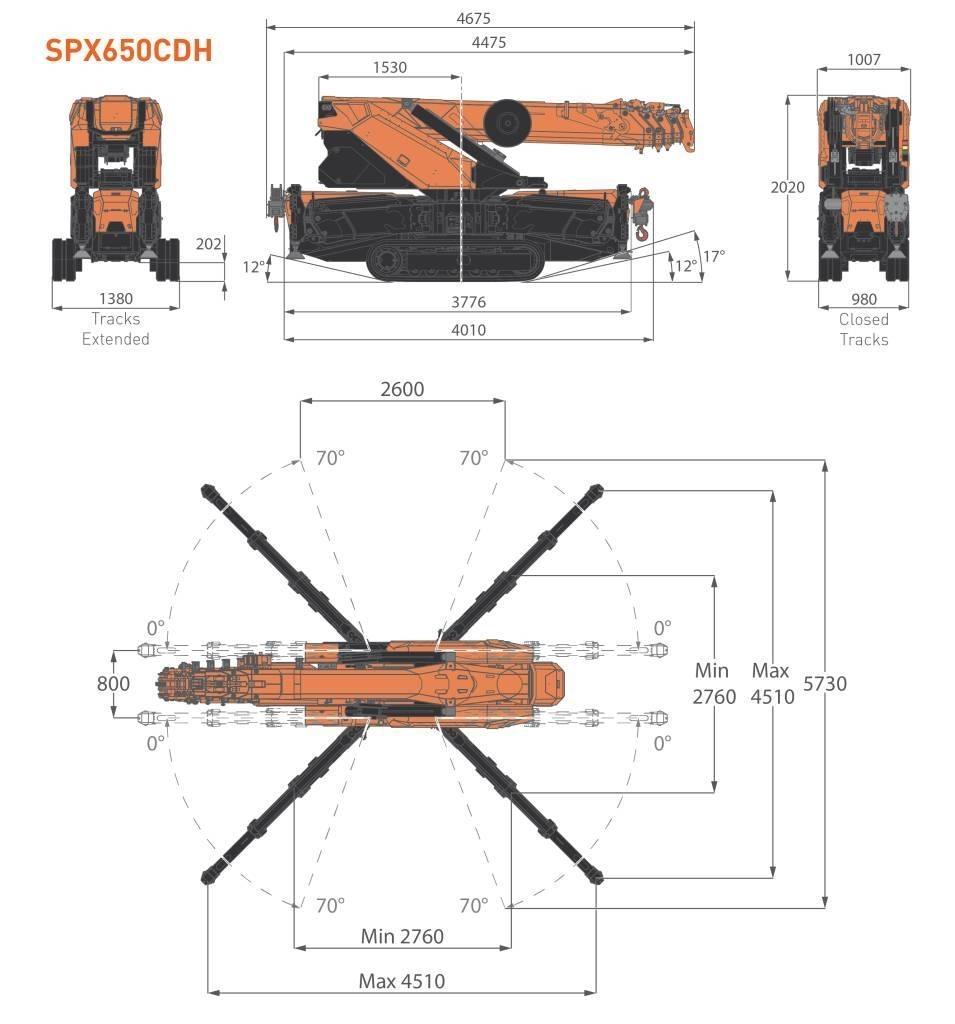

Transport dimensions (LxWxH)
4640 x 980 x 2020 mm
Front tyres remaining
100
Rear tyres remaining
100
Production country
Italy
Delivery terms
EXW
Certificates
CE
Attachments
W800.80-2 Orbital motor winch 800 kg, 80m rope, 7 mm for
SPX650 + 1T single line hook
5T-D7 5 ton - 3 sheaves pulley block D7 rope
PP400-9.B2 Threephase Powerpack 50Hz 400V-9,0kW
JIB1200.3HX Hydraulic Luffing Jib with link, 1.200 kg SWL, 3
hydraulic extensions
JIB2000GX Runner Jib, 2000 kg SWL
HA-SPX650 Hydraulic extra functions
Other information
Diesel powered minicrane mod. SPX650CDH-3B
Diesel Engine Kubota D1305-E4B- 18,5 kW
Engine Stage V - Tier IV Final
Nr 4 hydraulic telescopic sections + hook heads
360° continuous rotation on slewing ring
Variable Displacement Piston Pump
Outriggers mats (exagonal)
Signaling led lights on outriggers
Radio Control with Color Display (RCD)
Load And Moment Indicator (LMI)
Geometrical Stability Control (GSC)
Crane Carrier Interlock (CCI)
Anti To Block (A2B)
Diagnostic Trouble Code (DTC)
Plug & Play Attachments (PPA)
Pick & Carry (P&C) - 360°
Crane Multi Speed (CMS)
Virtual Wall (VW)
Extendable Tracks (EXT)
LED working light
Tower lamp
Jumpstart kit
USB stick with Manuals & Documents
Color: Orange RAL2004, Grey RAL7021
