Cummins NTA855-M380
Price excl. VAT
POA
Print
INFO
Product group
Engines
Brand / model
Cummins NTA855-M380
Year of manufacture
2018
Condition
New/unused
Machine location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
96F43EFC
DETAILS
Internal stock no.
NTA855-M380
Latest inspection
yes
Engine output
283 kW (385 hp)
Part ID
NTA855-M380
Full service history
Yes
Manufacturing / Serial number
NTA855-M380
Transport weight
1,400 kg
Transport dimensions (LxWxH)
1700 x 1100 x 1900 mm
RPM
1800
Emission level
Stage II / Tier II
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Other information

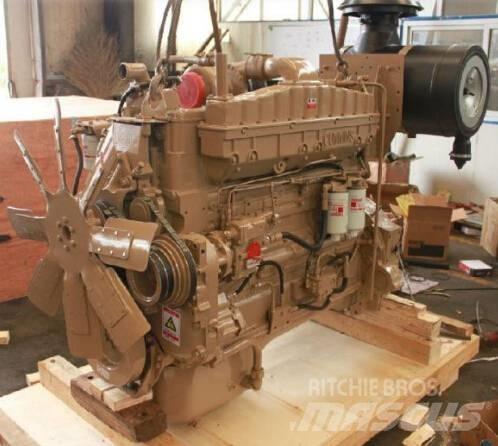

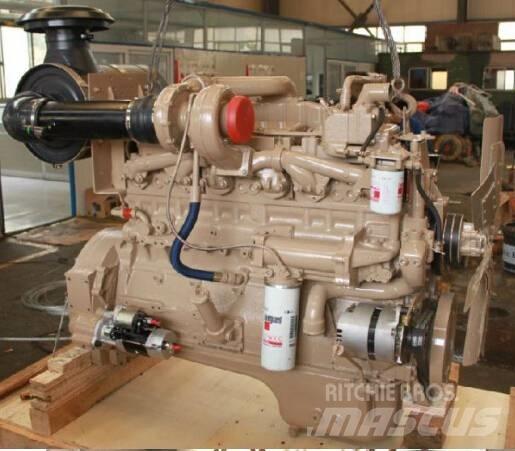

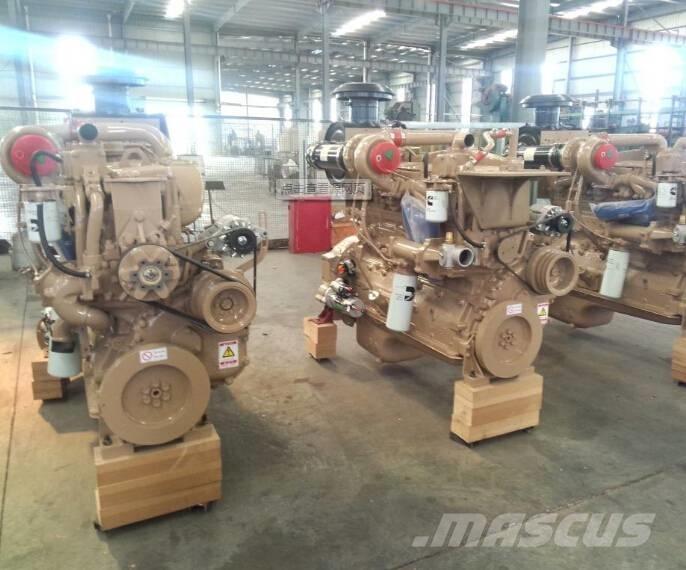

Cummins NTA855-M380 Marine Propulsion Diesel Engine
General Information of Cummins NTA855-M380 Marine Propulsion Diesel Engine
Engine Model NTA855-M380
Engine Type 6 Cylinders in Line
Displacement 14 L
Bore*Stroke(mm) 140 * 152
CPL Number 0700
Net Weight (with flywleel & alternator) 1303 Kg
Overall Diemension(L*W*H) 1809mm*881mm*1598mm
Technical Specification of Cummins NTA855-M380 Marine Propulsion Diesel Engine
Marine Certification CCS
Aspiration Turbocharged & Inter-cooled
Fuel System PT Pump
Electrical System(Starter Motor/Alternator) 12V/24V
Standard Thermostat Operating Range (Open) 180 °C
Standard Thermostat Operating Range (Full Open) 201 °C
Performance Data of Cummins NT855-M380 Marine Propulsion Diesel Engine
Rated Power/Speed 283 kW/350HP @ 1800rpm
Fuel Consumption @ Rated Power 66 l/hr
Compression Ratio 14.5:1
Rating Type Continuous
Idel Speed 575±675 rpm
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
