Cummins KTA19-C525
Price excl. VAT
Print
INFO
Product group
Engines
Brand / model
Cummins KTA19-C525
Year of manufacture
2025
Condition
New/unused
Machine location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
9990B873
PRICING
Choose currency
DETAILS
Internal stock no.
KTA19-C525
Latest inspection
yes
Engine output
373 kW (507 hp)
Part ID
KTA19-C525
Full service history
Yes
Manufacturing / Serial number
KTA19-C525
Transport weight
2,250 kg
Transport dimensions (LxWxH)
2500 x 1300 x 2000 mm
RPM
2100
Emission level
Stage II / Tier II
Condition info/guarantee
ISO9001
Production country
China
Delivery terms
FCA, CPT, FOB, CFR, CIF, EXW
Other information
Engine Model: KTA19-C525
Engine Type: 6 Cylinders in Line
Displacement: 19 L
Rated Speed: 2100 rpm
Rated Power: 373 kW(525 HP)
Max. Torque/Speed: 1870 N.m @1500 rpm
Aspiration Method: Turbocharged-Intercooled
Emission Standard: Euro I
Fuel Consumption: 210 g/kW.h

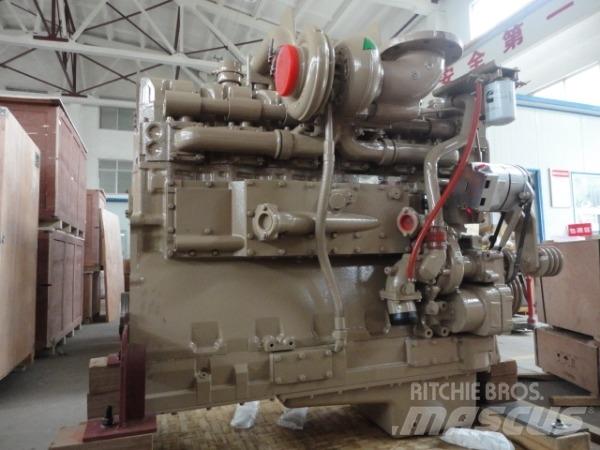

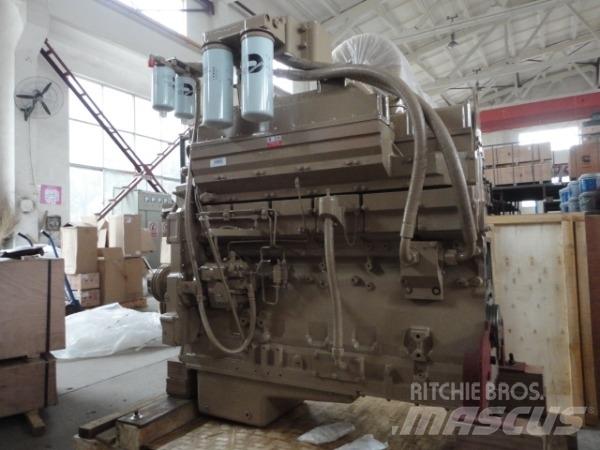

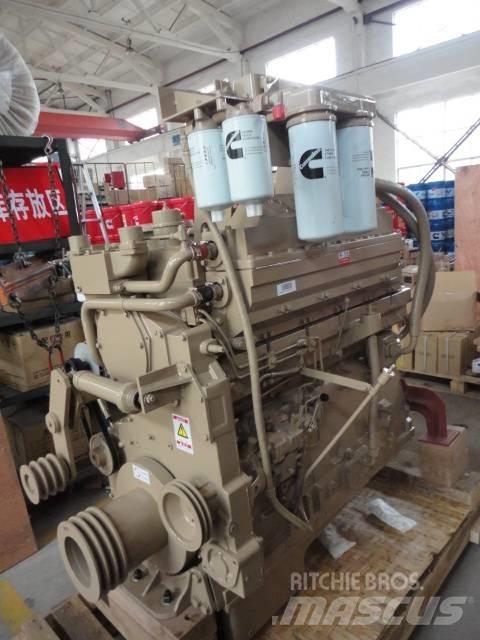

Cummins KTA19-C525 Industrial Diesel Engine
General Information
Engine Model KTA19-C525
Engine Type 6 Cylinders in Line
Displacement 19 L
Bore*Stroke(mm) 159*159
Compression Ratio 13.9 : 1
Net Weight (with flywleel & alternator) 2073Kg
Overall Diemension(L*W*H) 2151mm*966mm*1704mm
Technical Specification
Certification Euro I
Aspiration Turbocharged-Intercooled
Fuel System Direct Injection Pump
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Cooling Method Water Cooled
Performance Data
Rated Power 373 kW/525 HP
Rated Speed 2100 rpm
Max.Torque/Speed 1870 N.m @ 1500 rpm
Fuel Consumption 210 g/Kw.h
Max. Continuous Running Altitude 2000 m
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
