Cummins K50-G3
Price excl. VAT
POA
Print
INFO
Product group
Engines
Brand / model
Cummins K50-G3
Year of manufacture
2020
Country
China
General grade
1
2
3
4
5
Mascus ID
351427B0
DETAILS
Engine output
1,097 kW (1,492 hp)
Part ID
K50-G3
Engine manufacturer
Cummins
Manufacturing / Serial number
KTA50-G3
Transport weight
5,410 kg
Transport dimensions (LxWxH)
3200 x 2300 x 2000 mm
RPM
1500
Emission level
Stage II / Tier II
Condition info/guarantee
ISO90001
Production country
China
Delivery terms
DAP, DDP, FOB, CIF, EXW
Other information

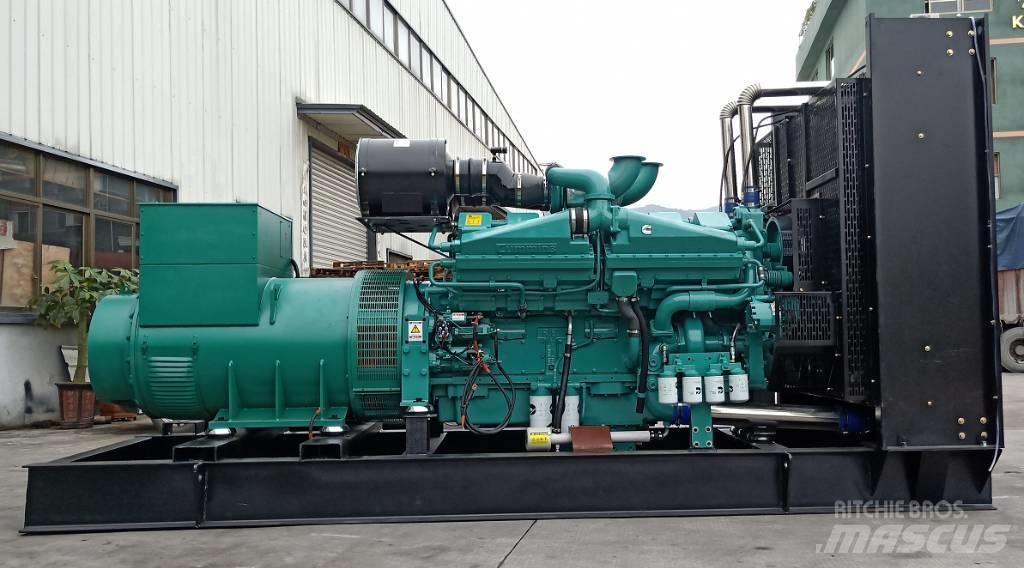

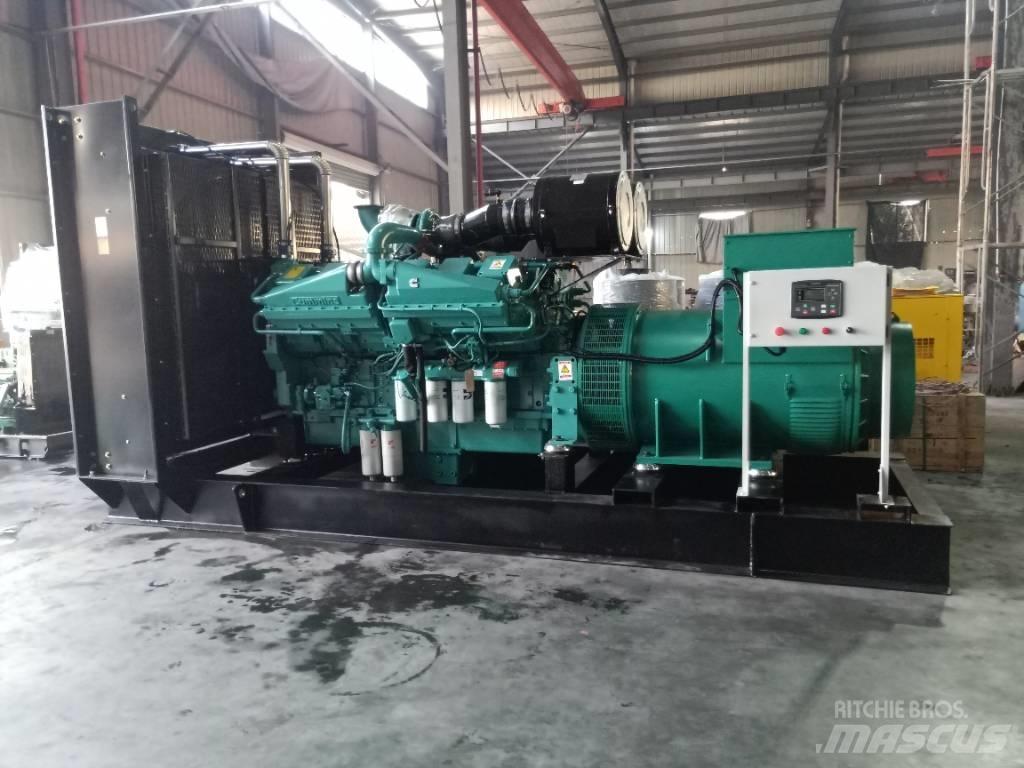

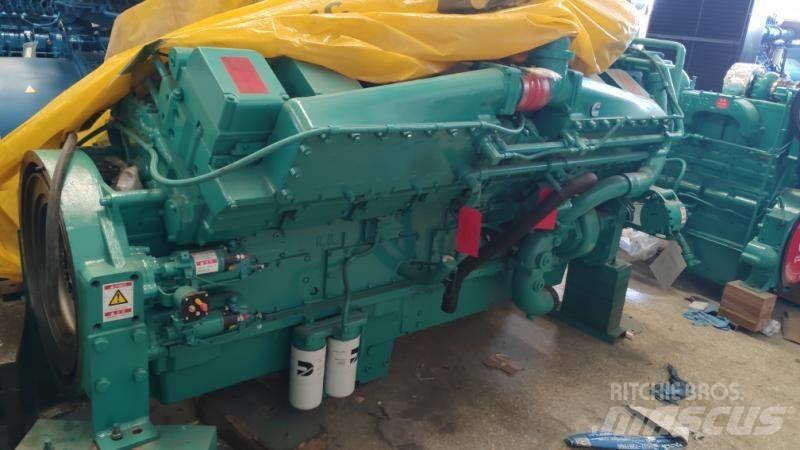

Cummins KTA50-G3 Generator Engine
General Information
Engine Model KTA50-G3
Engine Type 16 Cylinders, V-type
Displacement 50.3 L
Bore*Stroke(mm) 159 * 159
CPL Number 2227
Net Weight (with flywleel & alternator) 5360 Kg
Overall Diemension(L*W*H) 2978mm*2080mm*1780mm
Technical Specification
Fuel System PT Pump Direct Injection
Aspiration Turbocharged & Intercooled
Governing Rate ≤5%
Electrical System(Starter Motor/Alternator) 12V/24V
Engine Cooling Fluid 161L
Engine Oil Volume 151 L
Performance Data
Rated Power/Speed 1097kW/1470HP/ 1500rpm
Standby Power/Speed 1227kW/1645HP /1500rpm
Idle Speed At Rated Power 725-775r/min
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
