Volvo EC 300
Price excl. VAT
Print
INFO
Product group
Crawler excavators
Brand / model
Volvo EC 300
Year of manufacture
2022
Hours of use
720 h
Country
China
General grade
1
2
3
4
5
Mascus ID
40B23556
PRICING
Choose currency
DETAILS
Power type
Diesel
Amount of previous owners
1
Latest inspection
2025-08-12

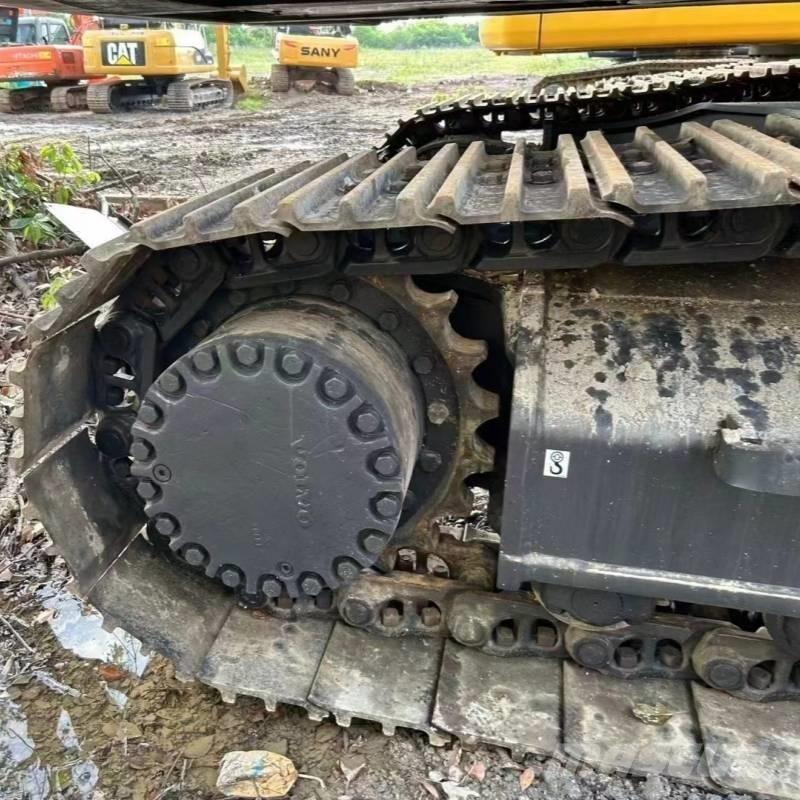

Undercarriage condition
Orginal
Gross Weight
30,210 kg
Engine output
189 kW (257 hp)
Engine manufacturer
Orginal
Emission level
Stage V / Tier V
Bucket capacity
1.69 m3
Original colour
Orginal
Condition info/guarantee
1 Year
Production country
South Korea
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Accessories
Quick coupler
Skeleton bucket
Joystick control
Standard digging bucket
Other information
基本参数:
整机工作重量:30210 - 36850kg
铲斗容量:1.69m³
动臂长度:6200mm
斗杆长度:2750mm
性能参数:
回转速度:11rpm
回转扭矩:115Nm
行走速度:3.6/5.6km/h
爬坡能力:35°
铲斗挖掘力:207kN
斗杆挖掘力:163kN
最大牵引力:248kN
动力系统参数:
发动机型号:沃尔沃 D8M
额定功率:189kW/1600rpm
最大扭矩:1290Nm/1400rpm
排放标准:国 Ⅳ
液压系统参数:
主泵最大流量:2×276l/min
工作液压油路:33.3/36.3MPa
行走液压回路:36.3MPa
回转液压回路:28.9MPa
油类容量参数:
燃油箱:472L
液压油箱:215L
液压系统:385L
发动机油更换量:30L
冷却液:44L
尿素箱:50L
主体尺寸参数:
运输总长度:10550mm
运输总宽度:3190mm
运输总高度:3430mm
驾驶室全高:3110mm
上车宽度:2890mm
履带总长度:4865mm
履带板宽度:600mm
履带轨距:2590mm
配重离地间隙:1105mm
最小离地间隙:450mm
后端回转半径:3120mm
作业范围参数:
最大挖掘半径:10420mm
最大挖掘深度:9810mm
