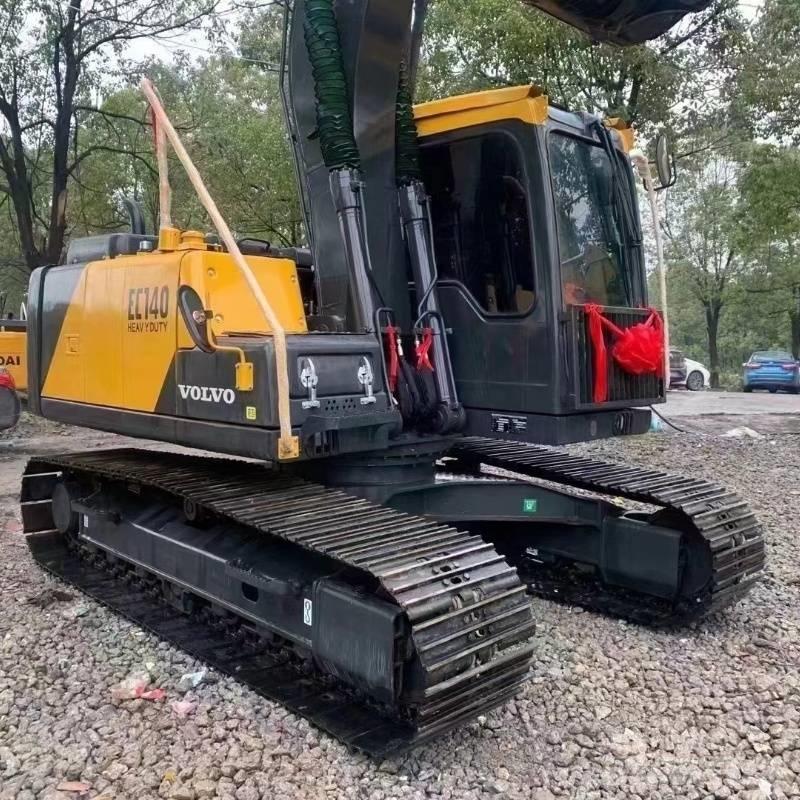

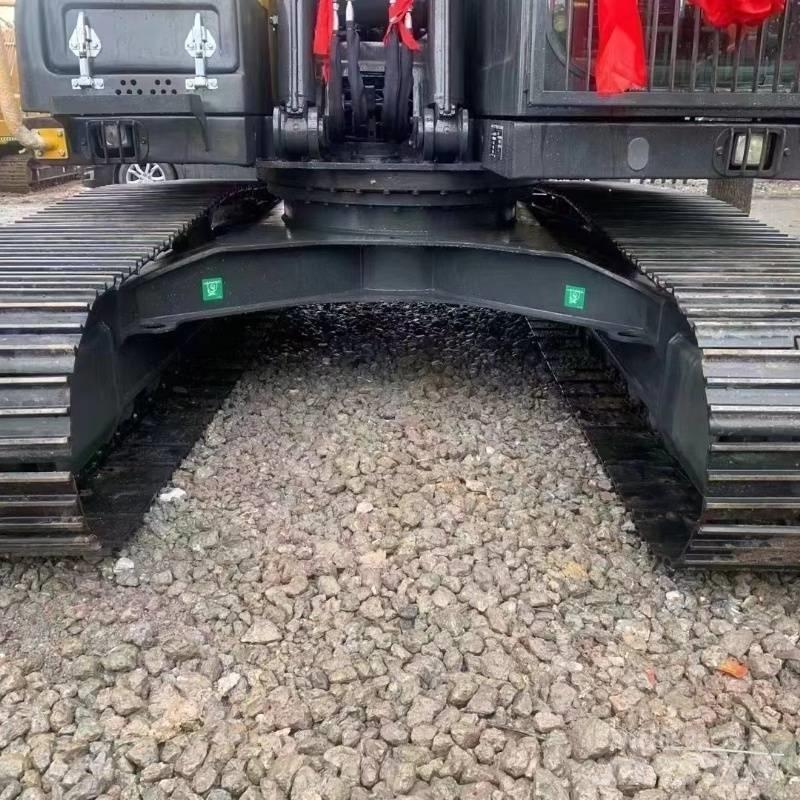

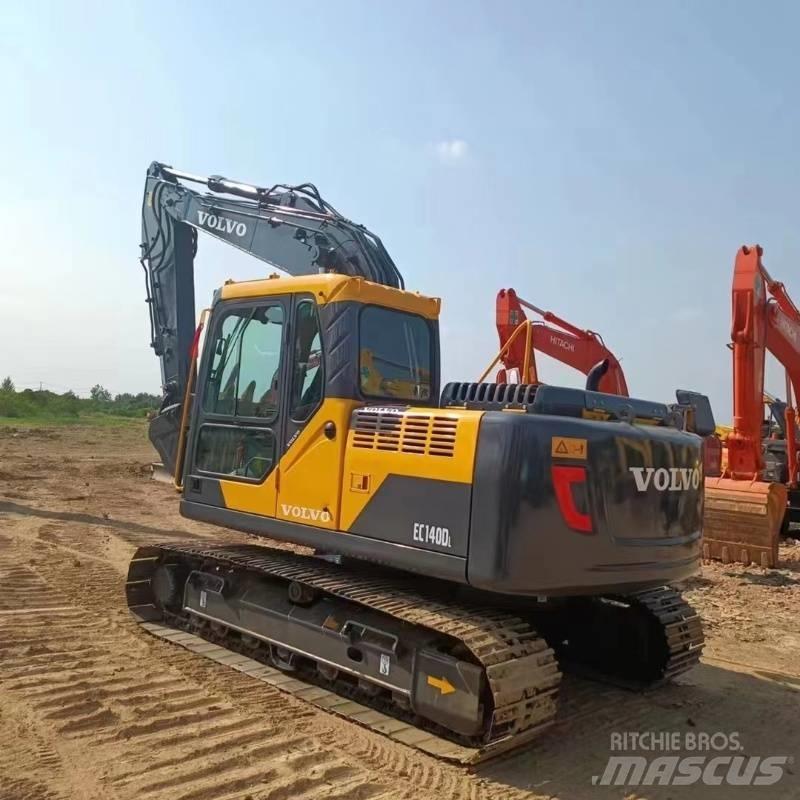

Volvo EC 140
Price excl. VAT
Print
INFO
Product group
Crawler excavators
Brand / model
Volvo EC 140
Year of manufacture
2021
Hours of use
850 h
Country
China
General grade
1
2
3
4
5
Mascus ID
2EDA21EB
PRICING
Choose currency
DETAILS
Power type
Diesel
Amount of previous owners
1
Latest inspection
2025-07-21
Undercarriage condition
Orginal
Engine
沃尔沃 D4D
Gross Weight
13,800 kg
Engine output
69 kW (93.8 hp)
Engine manufacturer
Orginal
Emission level
Stage V / Tier V
Bucket capacity
0.93 m3
Original colour
Orginal
Condition info/guarantee
1 Year
Production country
Japan
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Accessories
Other information
整机规格:
整机工作重量:13800kg
铲斗容量:0.55-0.93m³
动臂长度:4600mm
斗杆长度:2500mm
性能参数:
回转速度:11rpm
行走速度:3.2/5.5km/h
爬坡能力:70%
接地比压:34.6kpa
铲斗挖掘力:93.2kN(标准模式)/98.1kN(加力模式)
斗杆挖掘力:63.7kN(标准模式)/67.7kN(加力模式)
最大牵引力:109.8kN
发动机参数:
发动机型号:沃尔沃 D4D
额定功率:69kW/2100rpm
排量:4L
气缸数:4
液压系统参数:
主泵类型:变量轴向柱塞泵 ×2 + 齿轮泵
主泵最大流量:118×2+21L/min
工作液压油路:32.4/34.3MPa
行走液压回路:34.3MPa
回转液压回路:24.5MPa
先导油路:3.9MPa
动臂油缸:2-105×980mm
斗杆油缸:1-120×1045mm
铲斗油缸:1-100×865mm
油类容量:
燃油箱:260L
液压油箱:100L
液压系统:205L
发动机油更换量:15.5L
冷却液:20.3L
主体尺寸:
运输总长度:7700mm
运输总宽度:2590mm
运输总高度:2830mm
履带接地长度:3000mm
履带总长度:3740mm
履带板宽度:600mm
履带轨距:1990mm
最小离地间隙:430mm
后端回转半径:2200mm
作业范围:
最大挖掘半径:8330mm
最大挖掘深度:5530mm
最大挖掘高度:8420mm
最大卸载高度:5980mm
最大垂直挖掘深度:5060mm
