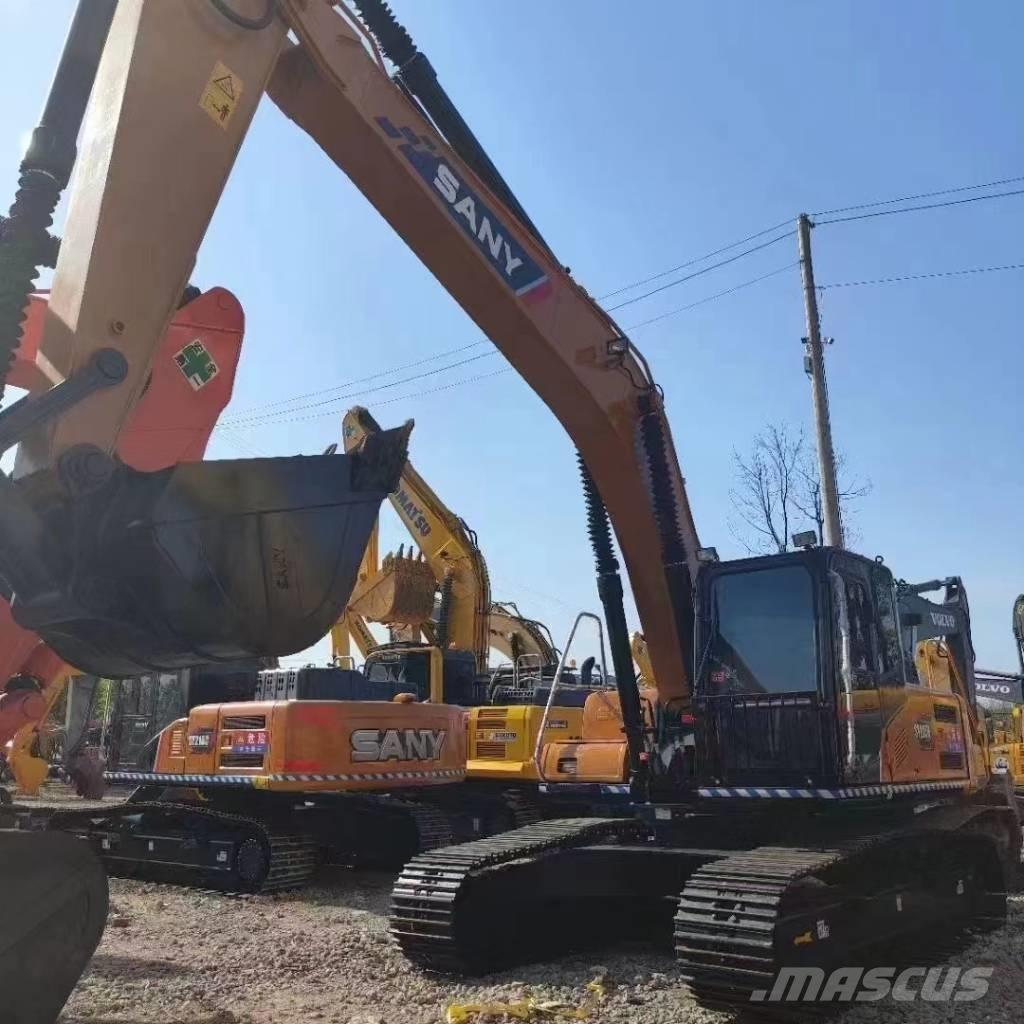

Sany SY 235 H
Price excl. VAT
Print
INFO
Product group
Crawler excavators
Brand / model
Sany SY 235 H
Year of manufacture
2022
Country
China
General grade
1
2
3
4
5
Mascus ID
E7EA74DB
PRICING
Choose currency
DETAILS
Power type
Diesel
Latest inspection
2024-05-20

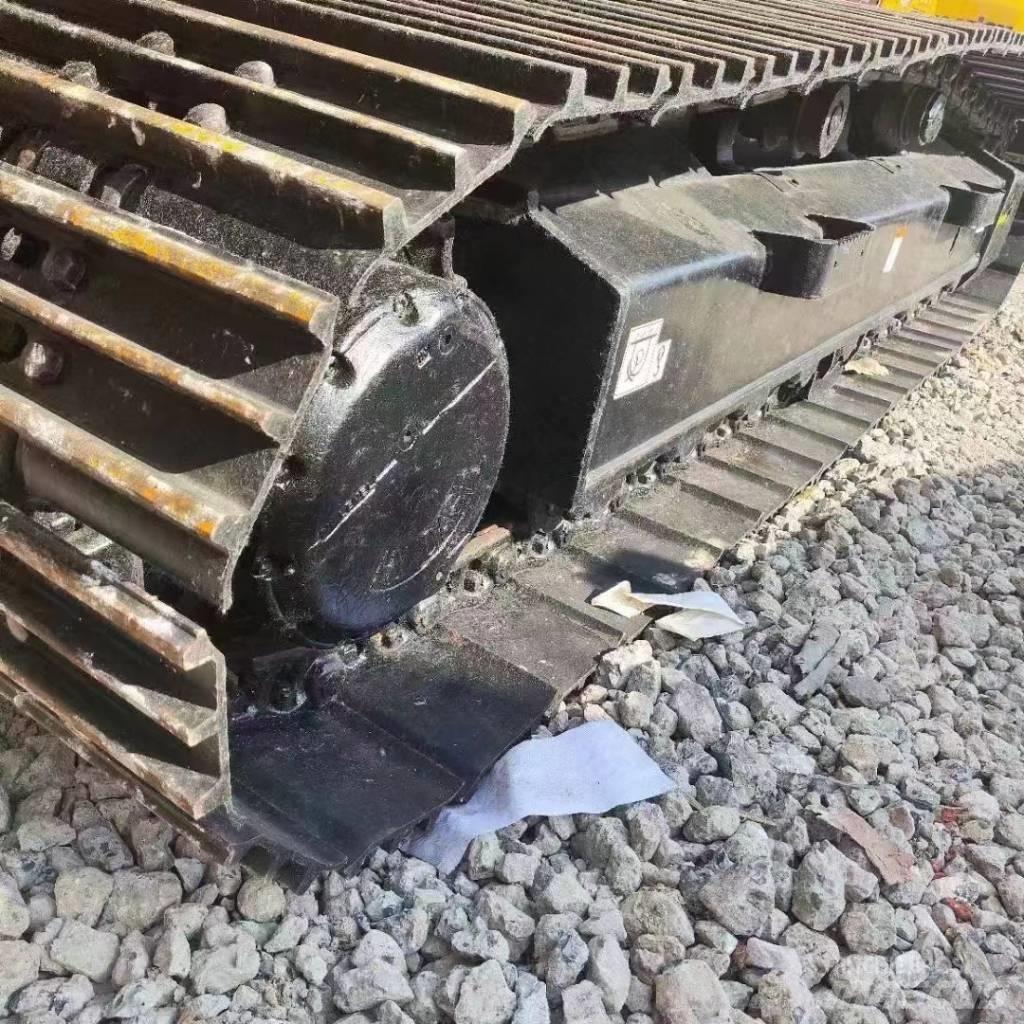

Undercarriage condition
perfect
Engine
Isuzu 4HK1
Gross Weight
23,000 kg
Engine output
128 kW (174 hp)
Engine manufacturer
Isuzu
Bucket capacity
1.35 m3
Track width
600 mm
Transport dimensions (LxWxH)
9.635/2.98/3.1 m
Condition info/guarantee
perfect
Production country
China
Delivery terms
FCA, FOB, EXW
Certificates
EPA, CE, ANSI, AS
Other information
Main Performances:
·Travelling speed(km/h):3.5/5.6
·Swing speed(r/min):11.5
·Gradeability(%):70
·Digging force of bucket(kN):158
·Digging force of arm(kN):124
Working Range:
·The maximum excavating height(mm):9470
·The maximum unloading height(mm):6735
·The maximum excavating depth(mm):6450
·The maximum excavating radius(mm):9745
Boundary Dimension:
·Boom length(mm):5900
·Arm length(mm):2950
·Track length(mm):4446
·Wheel base of track(mm):2380
·The minimum rotation radius of the rear end(mm):2900
·The minimum ground clearance(mm):442
Oil Capacity:
·Fuel tank volume(L):370
·Hydraulic oil tank volume(L):260
·Engine oil capacity(L):25
