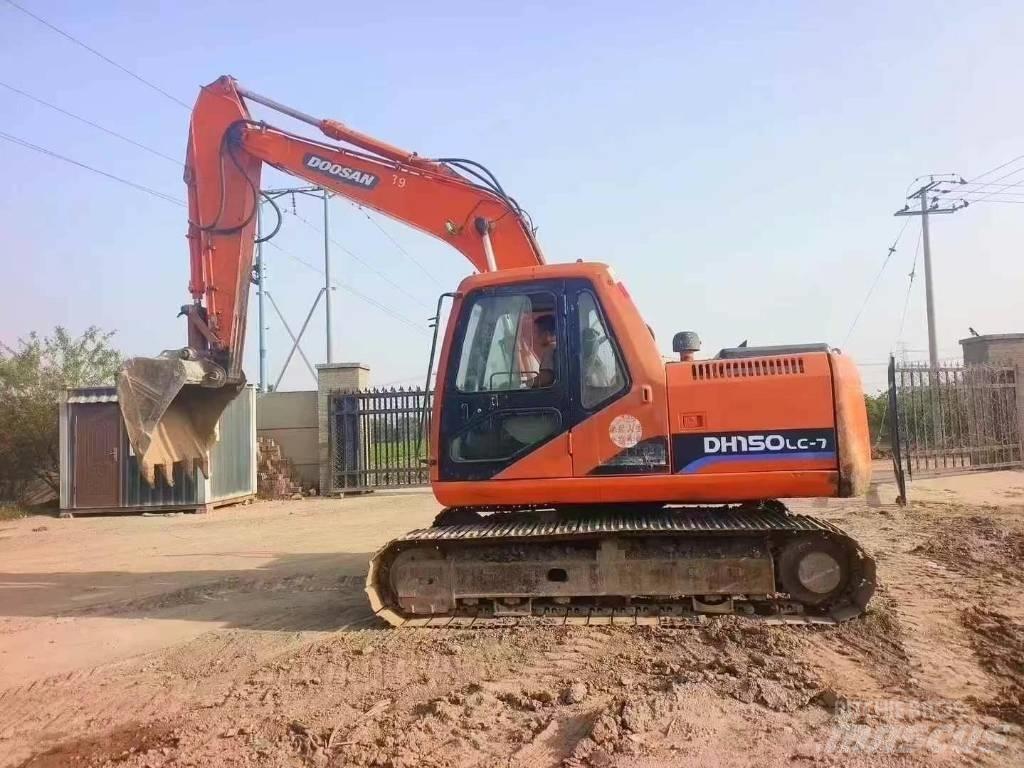

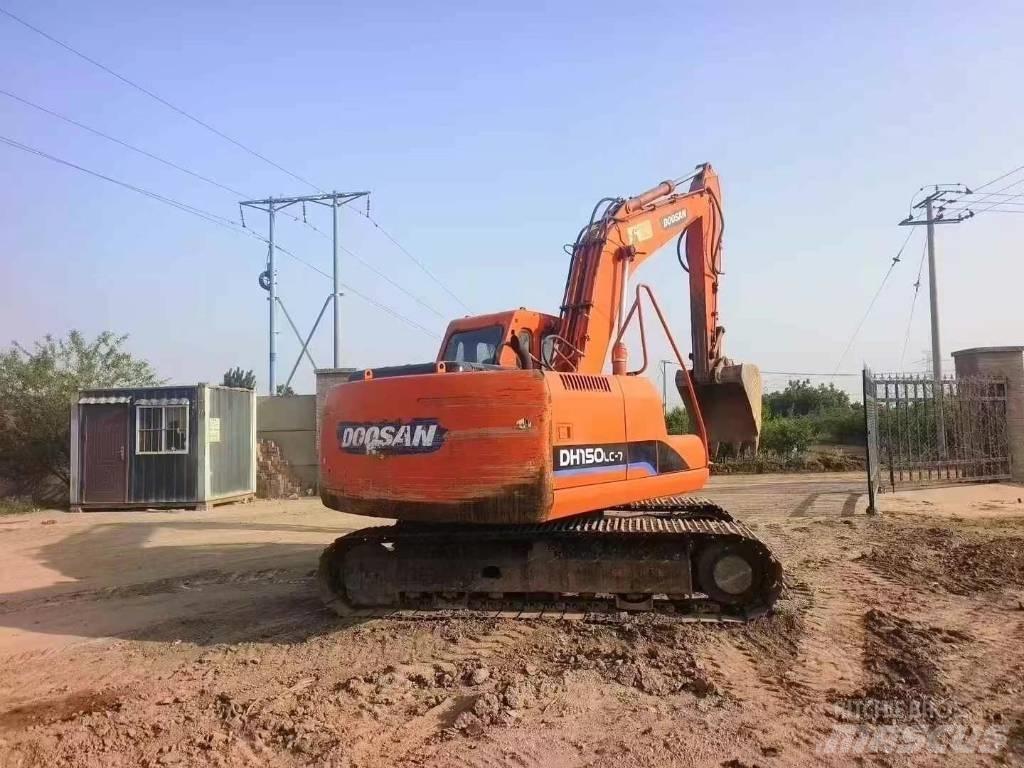

Doosan DH 150 LC-7
Price excl. VAT
Print
INFO
Product group
Crawler excavators
Brand / model
Doosan DH 150 LC-7
Year of manufacture
2020
Hours of use
986 h
Machine location
金山区, 上海
Country
China
General grade
1
2
3
4
5
Mascus ID
D248FD80
PRICING
Choose currency
DETAILS
Power type
Diesel
Amount of previous owners
1
Full service history
Yes
Latest inspection
2025-07-09

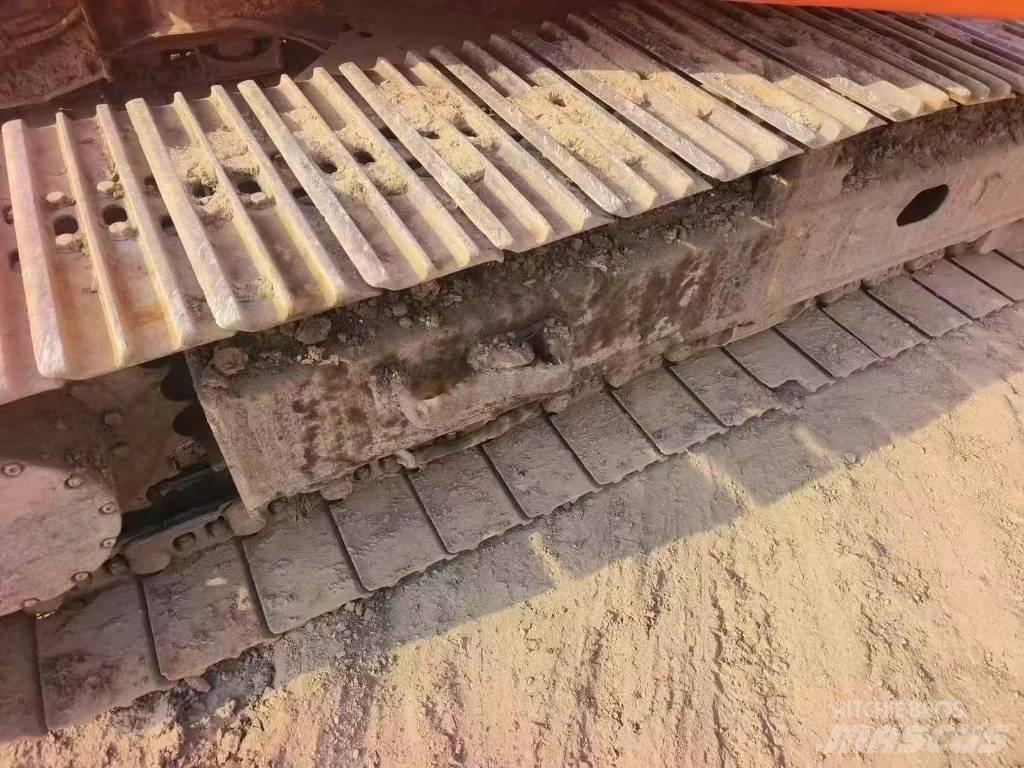

Undercarriage condition
good
Gross Weight
13,900 kg
Engine output
71 kW (96.5 hp)
Bucket capacity
0.75 m3
Track width
600 mm
Top speed
5.50 km/h
Original colour
yellow
Condition info/guarantee
good
Production country
China
Delivery terms
FAS, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Attachments
Hello, I'm Gavin, specializing in the sales of construction machinery. We have been working in this industry for decades and have four large machine storage yards in Shanghai. If you are interested in any machines, please feel free to contact me.
WhatsApp/WeChat: 0086 18019214942
Accessories
Diesel heater
Joystick control
Standard digging bucket
V ditch bucket
Other information
整机参数:
整机工作重量:13900kg
铲斗容量:0.28-0.75m³
动臂长度:4000mm/4600mm
斗杆长度:1900mm/2500mm/3000mm
运输总长度:7700mm
运输总宽度:2600mm
运输总高度:2830mm
履带板宽度:600mm
履带轨距:2000mm
最小离地间隙:410mm
后端回转半径:2200mm
性能参数:
回转速度:12rpm
行走速度:3.4-4.9km/h
铲斗挖掘力:标准 77.4kN / 增压 81.3kN
斗杆挖掘力:标准 57.8kN / 增压 62kN
发动机参数:
发动机型号:斗山 DB58TIS
额定功率:71kW/1850rpm
冷却方式:水冷
液压系统参数:
主泵类型:变量轴向柱塞泵
主泵最大流量:2×116L/min
工作液压油路压力:标准 32.5MPa / 增压 34.3MPa
行走液压回路压力:32.5MPa
先导泵流量:27.7L/min
作业范围:
最大挖掘半径:7220mm/8260mm/8740mm
最大挖掘深度:4670mm/5630mm/6130mm
最大挖掘高度:7890mm/8620mm/8950mm
最大卸载高度:5440mm/6200mm/6530mm
最大垂直挖掘深度:4170mm/5070mm/5660mm
