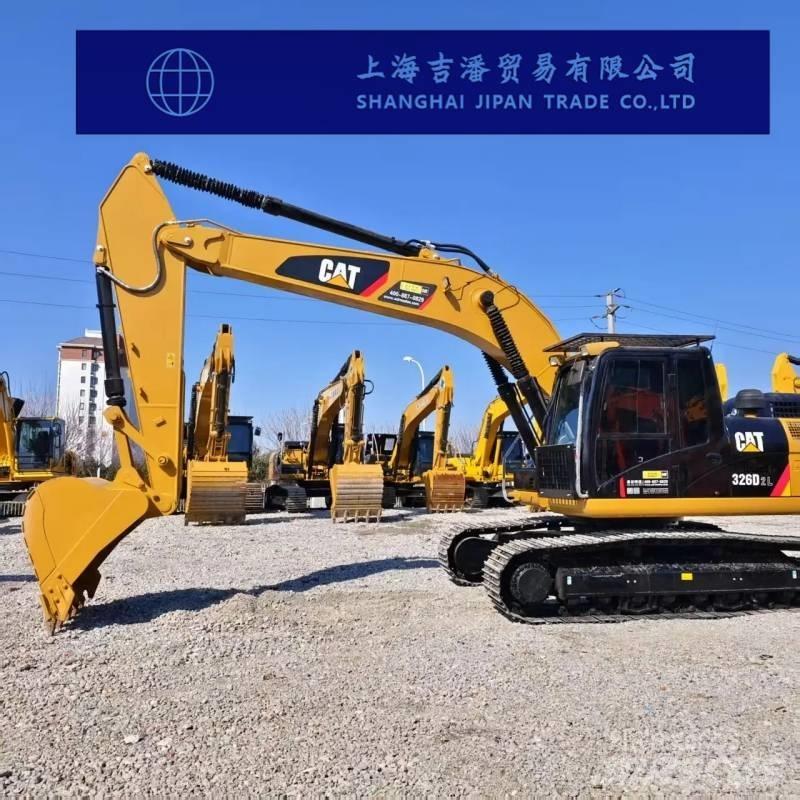

CAT 326 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

规格 整机工作重量(kg)25560 铲斗容量(m³)1.35/1.57 动臂长度(mm)5300/5900 斗杆长度(mm)2000/2500/2950 吨位(吨)26 动力传统动力 铲斗反铲 厂商合资/进口 动力传统动力 性能 回转速度(rpm)9.6 回转扭矩(Nm)73.4 行走速度(km/h)5.5 铲斗挖掘力(kN)174 斗杆挖掘力(kN)122 最大牵引力(kN)227 动力系统 发动机型号卡特彼勒 C7 ACERT 额定功率(kw/rpm)140 排量(L)7.2 缸径×行程(mm)110×127 冷却方式水冷 液压系统 主溢流设定压力(Mpa)35 主泵最大流量(l/min)235 行走液压马达型式35 回转液压马达型式24.5 先导油路(MPa)3.9 动臂油缸-个数×缸径×行程(mm)2×135×1305 斗杆油缸-个数×缸径×行程(mm)1×140×1660 铲斗油缸-个数×缸径×行程(mm)1×150×1156 油类容量 燃油箱(L)520 液压油箱(L)145 液压系统(L)300 发动机油更换量(L)30 冷却液(L )30 主体尺寸 运输总长度(mm)10060 运输总宽度(mm)3390 运输总高度(mm)3170 驾驶室全高(mm)2980 配重离地间隙(mm)1060 履带总长度(mm)4630 履带板宽度(mm)600 履带总宽度(mm)3390 履带轨距(mm)2590 最小离地间隙(mm )470 后端回转半径(mm )2940 作业范围 停机面最大挖掘半径(mm)10030 最大挖掘深度(mm)6740 最大挖掘高度(mm)9660 最大卸载高度(mm)6700 最大垂直挖掘深度(mm)5830 最大有效挖掘深度(mm)6560
