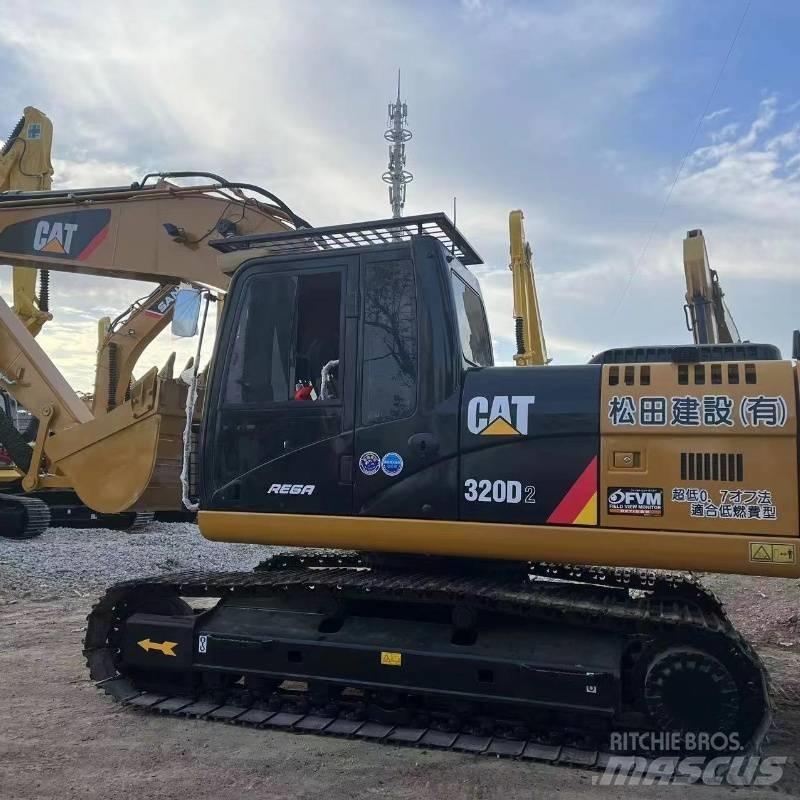

CAT 320 D
Price excl. VAT
Print
INFO
Product group
Crawler excavators
Brand / model
CAT 320 D
Year of manufacture
2022
Hours of use
620 h
Country
China
General grade
1
2
3
4
5
Mascus ID
D31A6060
PRICING
Choose currency
DETAILS
Power type
Diesel
Amount of previous owners
1
Latest inspection
2025-05-14
Undercarriage condition
Orginal
Engine
C6.4 ACERT
Gross Weight
20,930 kg
Engine output
103 kW (140 hp)
Engine manufacturer
CAT
Emission level
Stage V / Tier V
Bucket capacity
1 m3
Original colour
Orginal
Condition info/guarantee
1 Year
Production country
United States
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Accessories
Other information
整机参数:
整机工作重量:20930kg
铲斗容量:1m³
挖机吨位:20t
行走方式:履带式
铲斗形式:反铲
工况用途:通用型
发动机系统:
型号:C6.4 ACERT
额定功率:103kW
总排量:6.37L
缸径 × 行程:102mm×130mm
气缸数:6
冷却方式:水冷
性能参数:
回转速度:11.5rpm
行走速度(高 / 低):5.5/3.5km/h
爬坡能力:70%(35°)
接地比压:6Kpa
铲斗挖掘力:140.1kN
斗杆挖掘力:106.4kN
最大牵引力:206kN

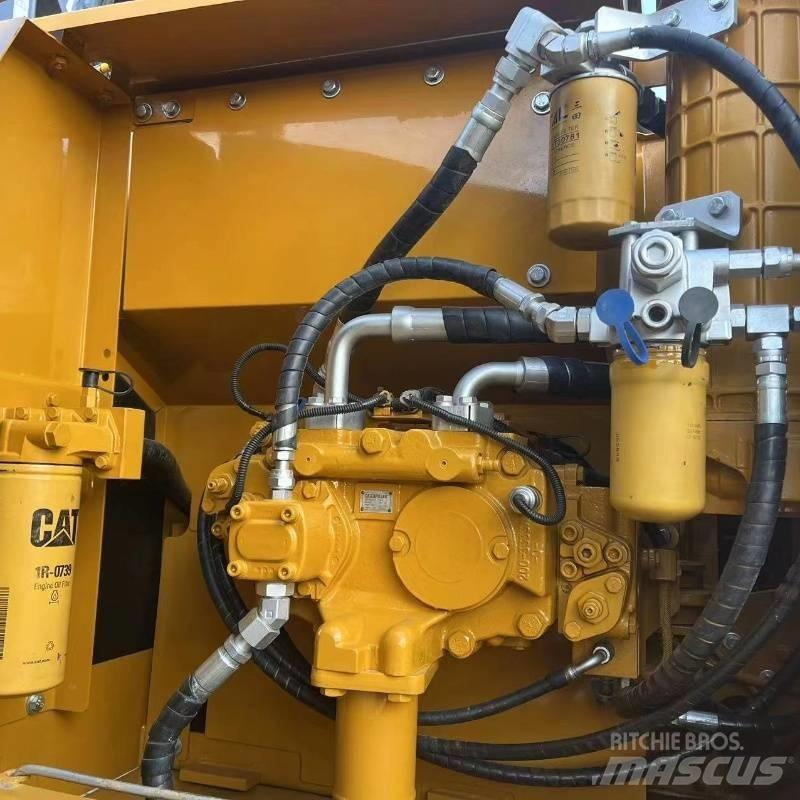

液压系统:
主泵最大流量:205L/min
工作液压油路:35MPa
行走液压回路:35MPa
回转液压回路:25MPa
先导油路:3.9MPa
动臂油缸:2 个,缸径 120mm,行程 1260mm
斗杆油缸:1 个,缸径 140mm,行程 1504mm
铲斗油缸:1 个,缸径 120mm,行程 1104mm
油类容量:
燃油箱:410L
液压油箱:120L
液压系统(包括油箱):260L
发动机油更换量:30L
冷却液:25L
主体尺寸:
运输总长度:9460mm
运输总宽度:2800mm
运输总高度:3050mm
驾驶室全高:2950mm
配重离地间隙:1020mm
履带接地长度:3265mm
履带总长度:4075mm
履带板宽度:600mm
履带总宽度:2800mm
履带轨距
