Shantui STR20-5

Price excl. VAT

POA

Compnay LOGO
Images1

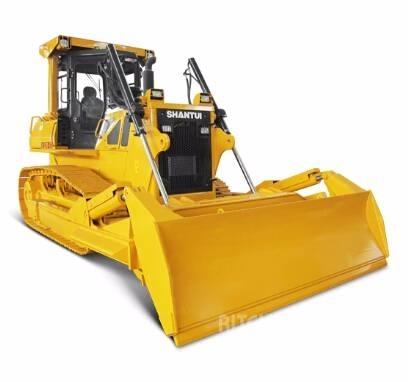

Shantui STR20-5 Crawler dozers
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product group
Crawler dozers
Brand / model
Shantui STR20-5
Year of manufacture
2018
Condition
New/unused
Machine location
Jining, Shandong, China
Country
China
General grade
1
2
3
4
5
Mascus ID
B6E0DAFF

DETAILS

Internal stock no.
STR20-5
Latest inspection
yes
Full service history
Yes
Working width
340 cm
Manufacturing / Serial number
STR20-5
Gross Weight
21,000 kg
Undercarriage
Tracked
Cabin type
Enclosed cab
Emission level
Stage II / Tier II
Engine
Weichai WD12
Engine output
149 kW (203 hp)
Track width
560 mm
Transmission
Shantui
Transport dimensions (LxWxH)
6500 x 3400 x 3070 mm
Original colour
yellow
Tyre brand
Shantui
Condition info/guarantee
ISO9001
Front tyres remaining
100
Production country
China
Equipped for
propertynames.pp_equippedfor_2100011
Delivery terms
FOB, CFR, CIF, EXW
Certificates
EPA, CE, ANSI
Accessories
Winch
Air conditioning
Additional hydraulics
Multi shank ripper
Show more
Other information
Technical Features ● It’s equipped with Weichai WD12 engine and three-stage air filter and is additional fitted with anti-scalding device, featuring higher efficiency and better energy-saving. ● The imported bearings for the transmission and main drive and the friction plates of higher skid and wear resistance and better anti-pollution capacity are adopted to achieve more excellent operating performances of the trimming bulldozer. ● The cooling system adopts enlarged water tank and straight-through type core. The three-point (up and down) shock-absorbing installation for the radiator features higher stability. ● The lifting cylinder of the hydraulic system adopts the bushing cap structure, featuring convenient maintenances. ● The electric circuit design of the whole machine adopts the water-proof circuits and water-proof fuse case. It’s additionally fitted with oil temperature, oil pressure, and water temperature alarms and reversing alarm. ● The floating oil seals within the guide wheel, carrier roller, and track roller can prevent the ingress of dusts and the leakage of lubricating oil to guarantee the high durability. ● The working device is controlled directly by the valve stems, featuring high reliability, lightness, and rapidness, and the locking mechanism features easy and reliable operations. ● The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame. ● New cab features good sealing performance and low noise and the instruments are reasonably arranged to realize convenient and rapid operations. Performance Parameters Overall dimensions(mm) 6468×3352×3063 Operating weight (kg) 21000 Engine model WD12 Net power/rated speed (kW/rpm) 149/1950 Track plate width (mm) 510 Ground pressure(Mpa) 0.063 Blade width/height (mm) 3175/950Show more

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
