SCM minimax sc 2c
Price excl. VAT
Print
INFO
Product group
Construction - Others
Brand / model
SCM minimax sc 2c
Condition
Used
Machine location
Langley, British Columbia
Country
Canada
Mascus ID
273108C2
PRICING
Choose currency
DETAILS
Internal stock no.
90123
Other information

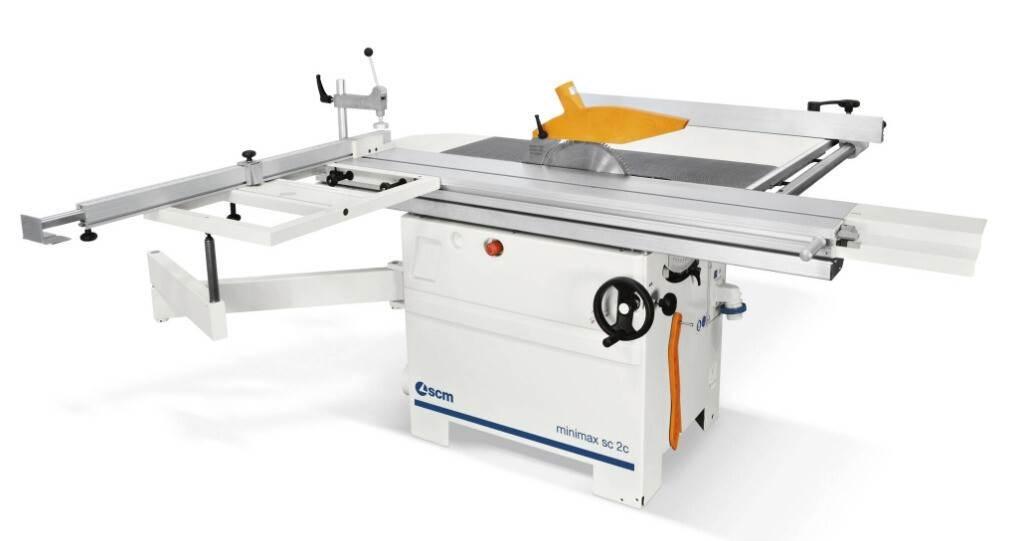

minimax sc 2c Circular Saw w/ Tilting Blade
Title: minimax sc 2c Circular Saw w/ Tilting Blade
SKU: 90123
Model: minimax sc 2c
Condition: New
GeneralHorsepower:3.4hp
Table Size:1020 x 325 mm
Blade Diameter:315 mm
Voltage:220volts
Phase:Single-phase
Saw Type:Sliding Saw
CNC:No
Made In: ITALY

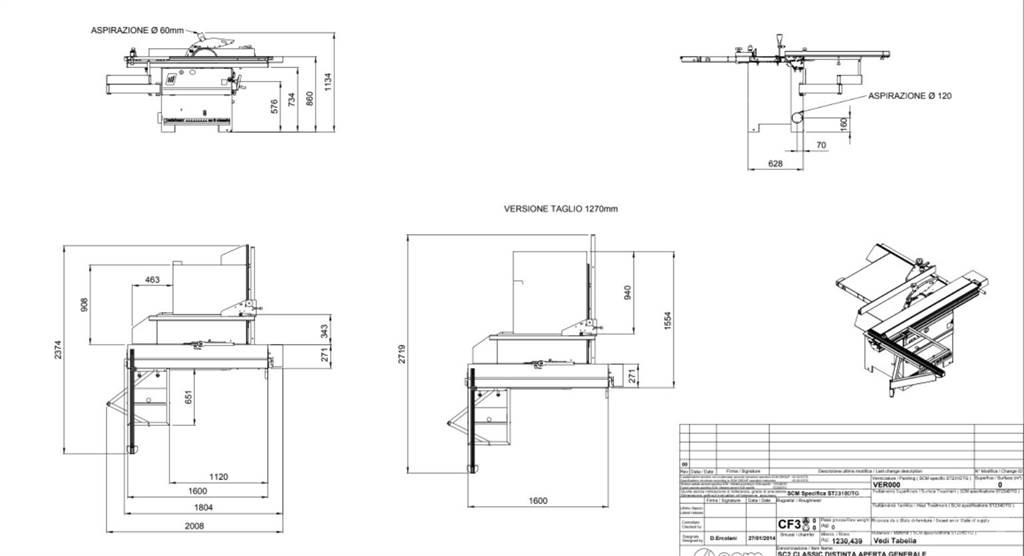

Dimensions: 3.74 (H) x 121.70 (W) x 152.00 (L) inches
Blades tilting: 90o to 45o
Max. saw blade projection from table at 90o/45o: 100/78 mm
Max. squaring stroke (standard): 1600 mm
Cutting width on parallel fence: 1270 mm
Exhaust outlet diameter: 120 mm
Standard Equipment
- Extruded anodized aluminum sliding table (dimensions 270 x 124 x 1600 mm), sliding on high precision hardened steel guideways
- Squaring frame complete with:
- telescopic fence with 1 retractable stop
- eccentric clamp
- support
- Dedicated saw parallel fence complete with:
- "high rigidity" cast iron fence support
- micrometric adjustment and cam-locking system
- rectified steel round sliding bar, 45 mm diameter
Additional Features
- Belt driven scoring unit complete with blade (Adjustment from the machine outside without need of tools)
- Scoring blade technical features:
- External diameter: 80 mm
- Internal diameter: 20 mm
- Z 12
- Rotation speed: 7700 rpm
- 2 Squaring flip-over stops
- Triple Wall
- Delivery Ex Factory
