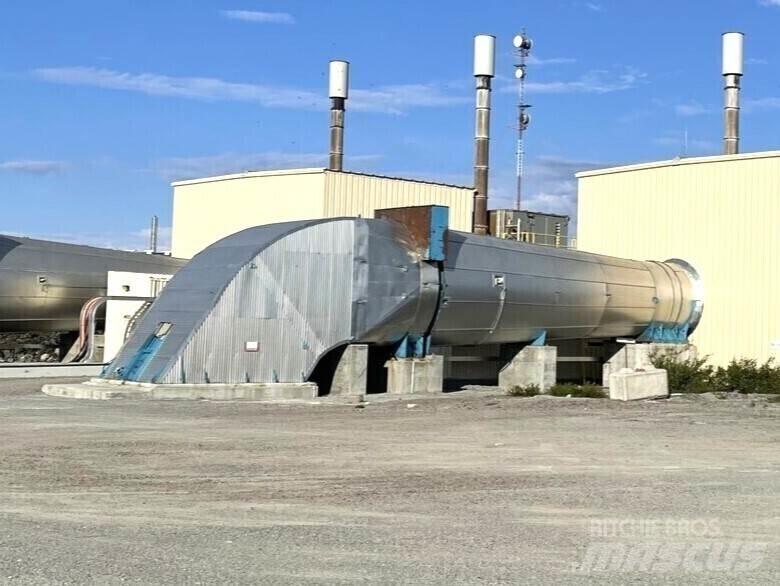

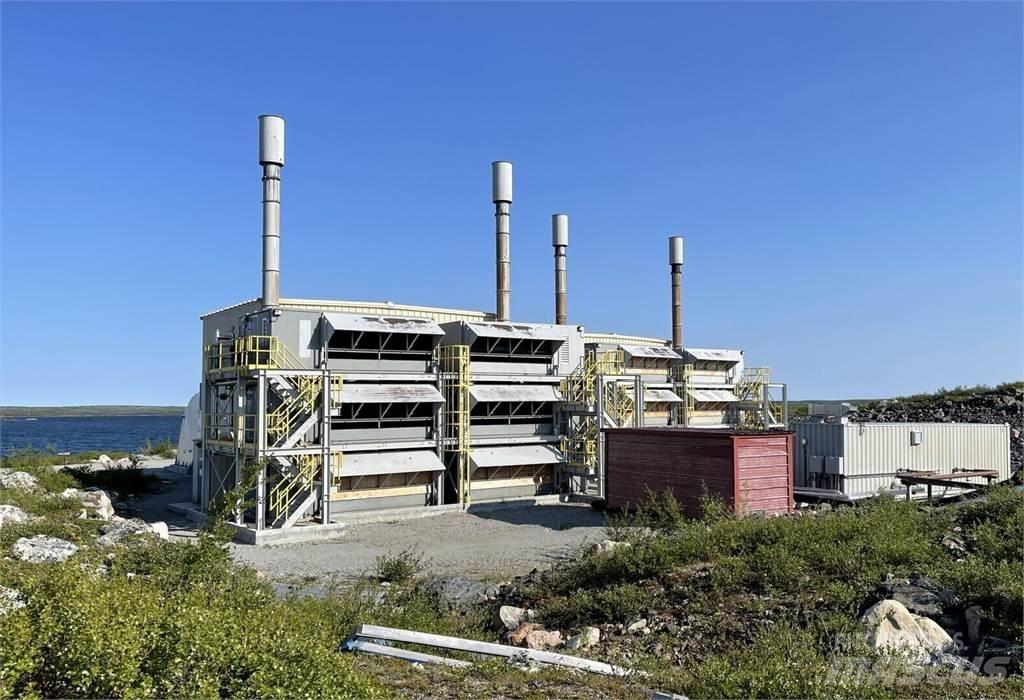

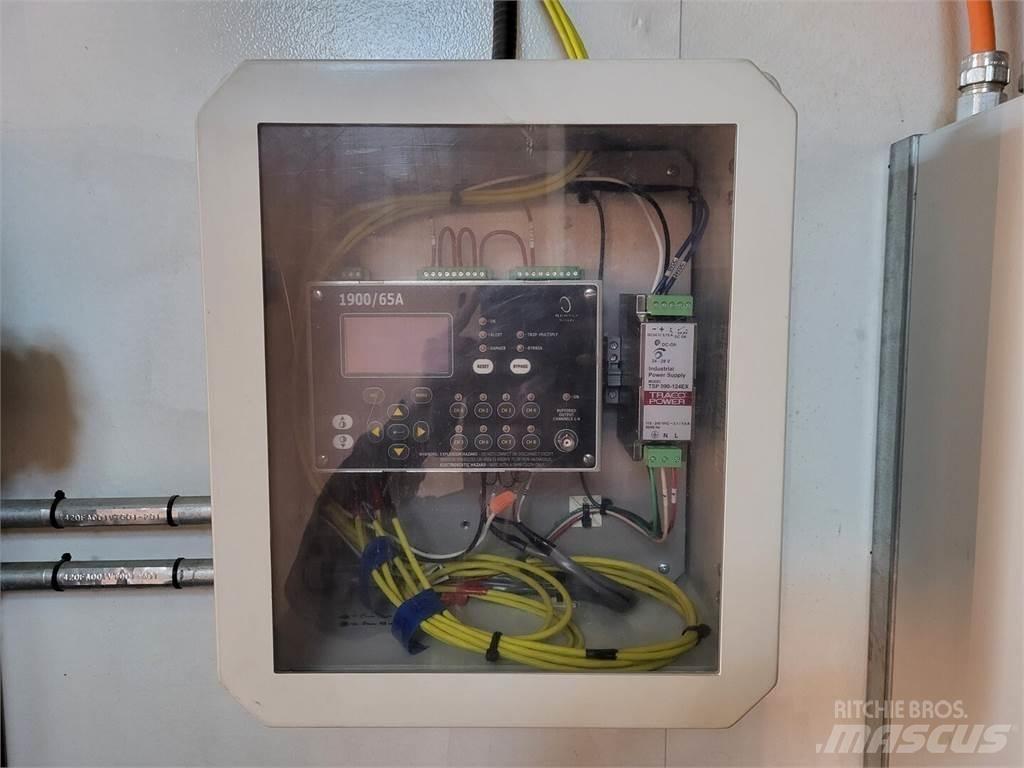

Fresh Air Ventilation System for Mining 1000hp 375000cfm Title: Fresh Air Ventilation System for Mining 1000hp 375000cfm SKU: 100888 Condition: Used GeneralType:Axial RPM:880rpm Horsepower:1000hp CFM:375,000cfm Fan Size:Approx. 10 ft. ElectricalVoltage:4000volts Phase:3-phase Each fresh air system includes: - 1 x ALPHAIR Axial Ventilation Fan & Air Tunnel w/ 1000hp Motor & Control Module - 6 x Heater/Burner Modules for Fresh Air Ventilation System - 1 x Spare Heater/Burner Module for Fresh Air Ventilation System System Specifications Fan Performance: - Max. Air Flow: 375,000cfm - Min. Air Flow: 276,000cfm - Static Pressure: 12.73 in. wg. - Fan RPM: 880rpm - Inlet Density: 0.075lbs/ft cu. - Blade Tip Angle: 34deg. Motor Specifications: - Make: TECO-WESTINGHOUSE - Desc.: Premium Efficiency 3-Phase Severe Duty Motor - Type: AEJH-8A001 - Poles: 8 - Output: 1000hp - Volts: 4000v - Rating: Cont. - Amps: 130a - RPM: 890rpm - IP: 55 Control Module Components: - ALLEN-BRADLEY PowerFlex 7000, 1000hp VFD - Controls for Heater/Burner Modules (Modules Sold Separately) - Motor and Fan Controls - Building Heating Units - Control Transformers - Heat Trace Control Panel and Power Supply for Insulated Fuel Lines (In FAR #1 Control Module Only) Heater/Burner Module Components: - 1 x Induced Draft Fan - 1 x Safety Switch/Disconnect - 1 x Control Panel - 1 x Oil Pump - 1 x Burner Unit - 1 x Louver Damper - 1 x Oil Supply, Propane, and Oil Return Hose Lines Supporting Documents: - [Fresh Air Ventilation System - Plan View](... [Fresh Air Ventilation System - Section View](... [Fresh Air Ventilation System - Fan Specifications](... [Fresh Air Ventilation System - Heater Module Floor Plan](... [Fresh Air Ventilation System - Heater Module Installation Layout](... [Fresh Air Ventilation System - Operation & Maintenance Manual](...
