INFO

Product group
Construction - Others
Brand / model
SCM nova si 400
Condition
Used
Machine location
Langley, British Columbia
Country
Canada
Mascus ID
D8EA5208

PRICING

Choose currency

DETAILS

Internal stock no.
90101
Other information

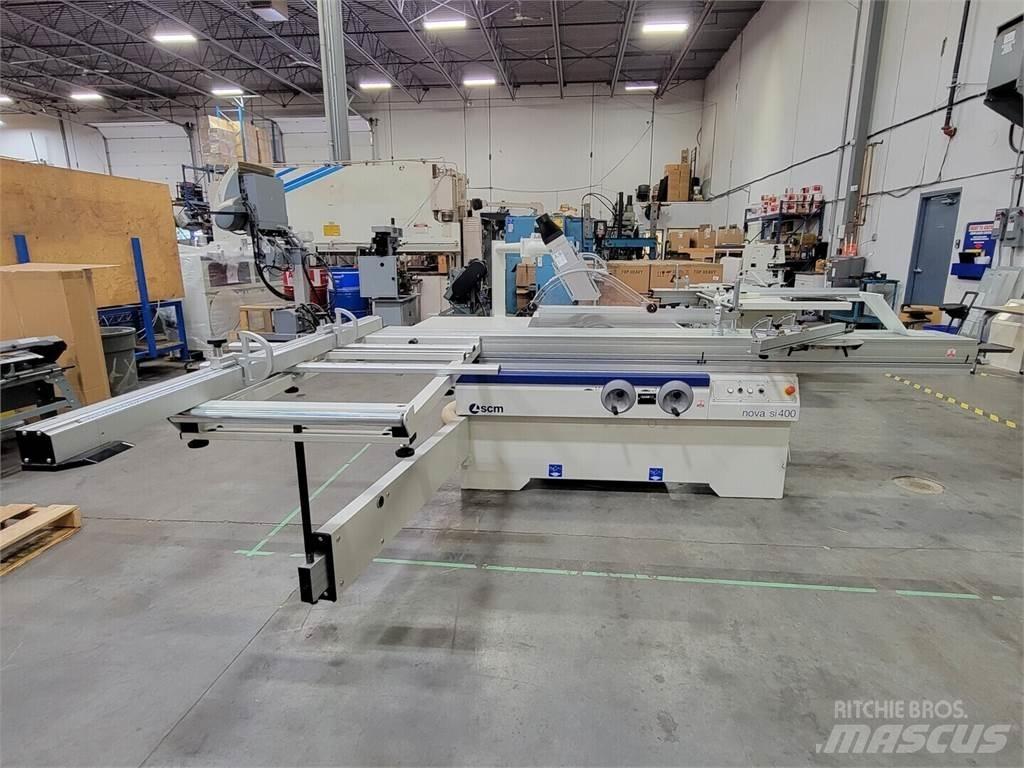

nova si 400 Circular Saw 220V w/ Tilting Blade Title: nova si 400 Circular Saw 220V w/ Tilting Blade SKU: 90101 Model: nova si 400 Condition: New GeneralHorsepower:11hp Table Size:1040 x 630 mm Blade Diameter:400 mm Voltage:220volts Phase:3-phase Saw Type:Sliding Saw CNC:No Made In: ITALY Dimensions: 44.50 (H) x 203.00 (W) x 279.00 (L) inches Max Cutting Height at 90o: 140 mm Max Cutting Height at 45o: 97 mm Blade Tilt: 45 degrees Blades Lifting and Tilt: Manual Main Blade Rotating Speed: 3700 rpm Scoring Unit Rotating Speed: 8500 rpm Scoring Unit Motor Power (S6 -40%): 1.3 kW (1.7 hp) Squaring Capacity w/ 3200 mm Carriage: 3200 x 3200 mm Cutting Width on Parallel Fence: 1270 mm Exhaust Outlet Diameter: - At the Base: 120 mm - On Overhead Protection: 80 mm - On Riving Knife: 60 mm Standard Equipment and Options - Anodized aluminum alloy carriage on hardened steel guides, which are fixed on the carriage by means of mechanical bending system - Sliding carriage length 3200 mm - Lifting and tilting of saw unit means of handwheels on the machine front side and mechanical readout of saw unit tilt - Squaring frame the fast fence positioning of angular cuttings - Outfeed table extensions - Manual rip fence with position reading on metric rule - Sliding on steel bar, 40 mm diameter with micrometric adjustment Safety/Protections - Emergency pushbutton located on the front machine side - Emergency pushbuttons located on parallel fence side (CE version) - Overload protection - Blade protection on riving knife (versions with electrical protections) exhaust outlet 60 mm - Overhead saw guard (CE and USA-Canada versions) incorporated dust extraction, 80 mm outlet diameter - Automatic brake on main sawblade (CE and USA/Canada version) - Padlockable main switch - Auxiliary low voltage circuit (110 voltage) - Certificate of conformity with "C.E. Standards" (CE version) - "CSA" rated electrical components, including cables (USA/Canada version) Additional Features - Eccentric Clamp - Seaworthy Packing [PDF Brochure](... Footprints](...Show more

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
