NEODEN K1830

Price excl. VAT

Compnay LOGO
Images10
NEODEN K1830 Construction - Others
NEODEN K1830 Construction - Others
NEODEN K1830 Construction - Others
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product group
Construction - Others
Brand / model
NEODEN K1830
Condition
Used
Machine location
Langley, British Columbia
Country
Canada
Mascus ID
00797CB2

PRICING

Choose currency

DETAILS

Internal stock no.
131777
Other information

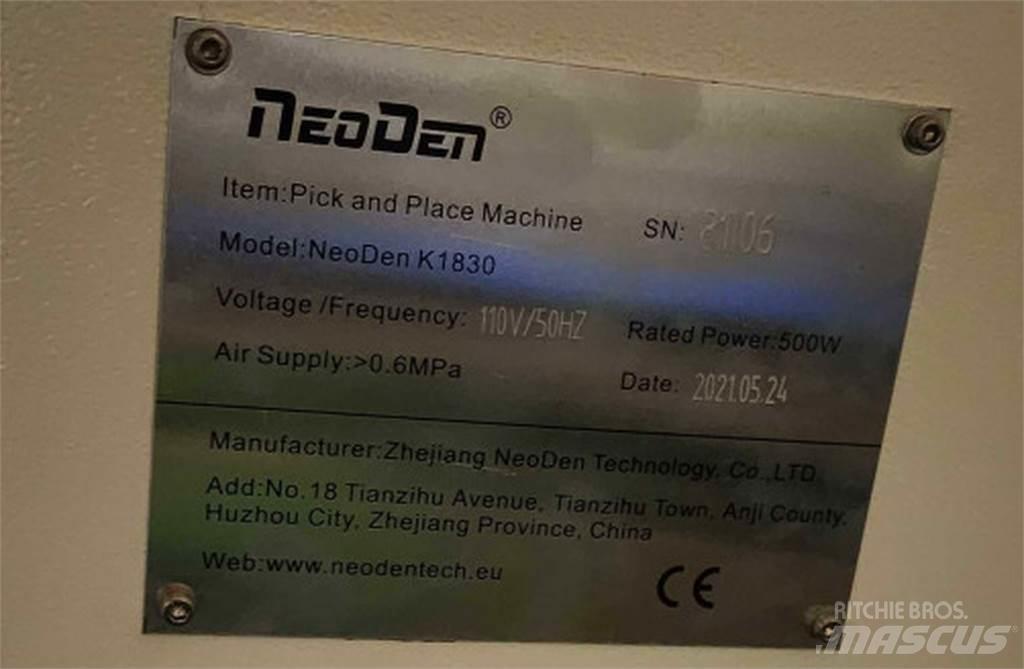

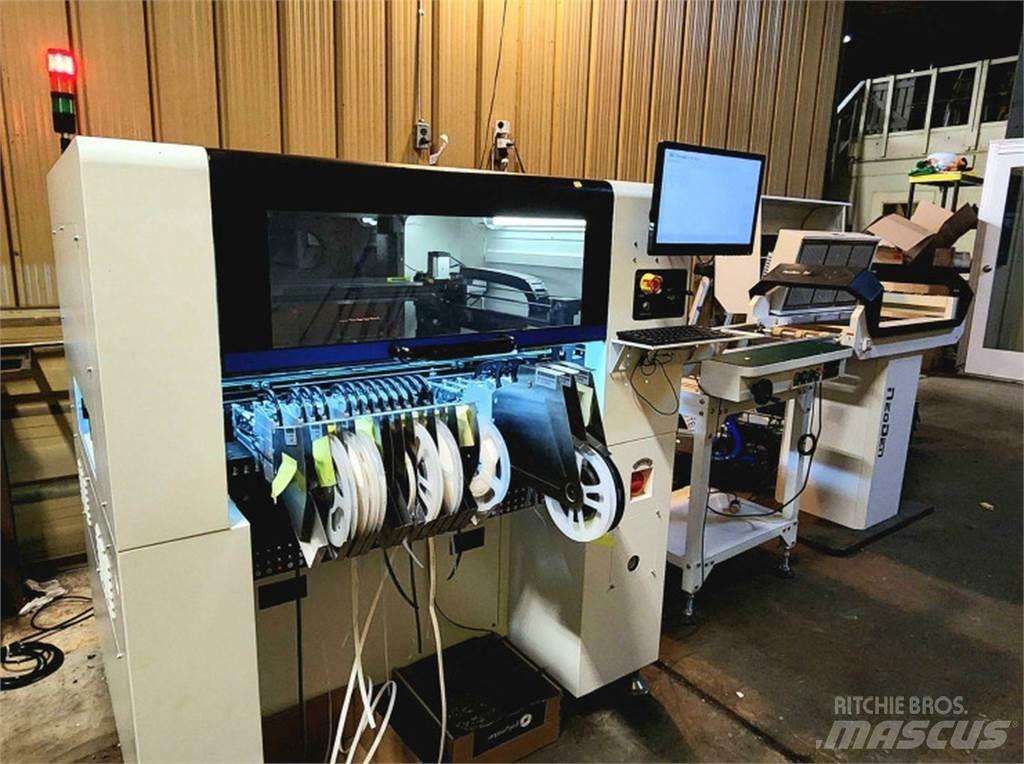

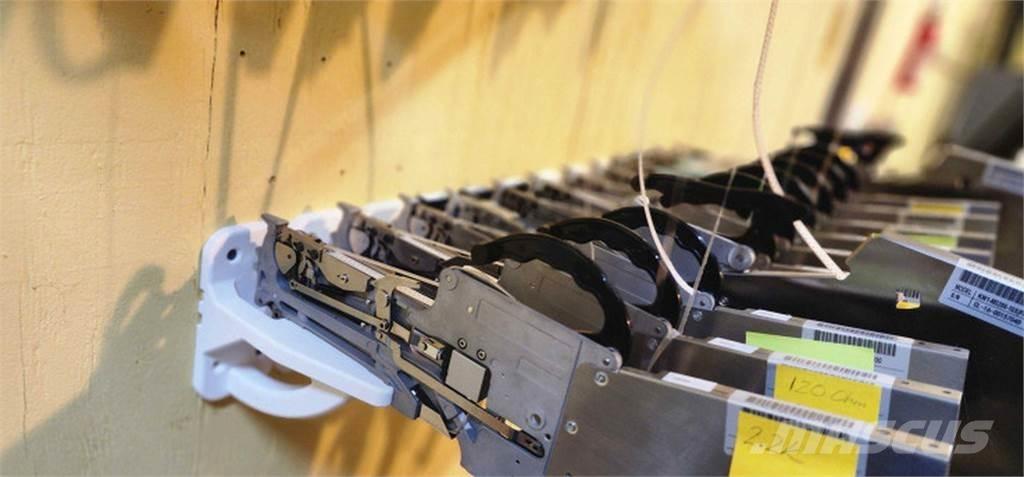

Pick and Place PCB Printed Control Circuit Board Chip Assembly Machine Title: Pick and Place PCB Printed Control Circuit Board Chip Assembly Machine SKU: 131777 Model: NeoDen K1830 Condition: Used Dimensions: 64.00 (H) x 44.00 (W) x 56.00 (L) inches Voltage: AC 110V Power: 500W PCB Equipment system components: (a) Pick and Place (PnP): NeoDen K1830 (b) PCB Conveyor Belt: NeoDen J10 Automatic SMT Conveyor (c) Reflow Oven: NeoDen IN6 (d) Solder Printer: NeoDen FP2636 (e) Accessories: Comes with various sized SMD Automatic CL Pneumatic Feeders (f) Accessories: Free Kuhmute-designed custom made 3D-Printed wall mounts for the feeders listed in (g) All related power and data cables. Technical Specifications for NeoDen K1830: Model: NeoDen K1830 Automated Pick and Place Machine PCB Fiducial Recognition: High Precision Mark Camera Nozzle Qty: 8 PCB Loading: Synchronized 3 Stages Internal Conveyor Reel Tape Feeder Qty (Max): 66 (Electric/Pneumatic) PCB Transfer Direction: Left->Right IC Tray Feeder Qty: 10 (In Succession) Air Supply: >0.6MPa Max PCB size: 540x300mm (In Single Step) Power: 500W Smallest Component Size: 0201 (Electric Feeder Available) Voltage: 110V/60HZ IC Packages: QFP, SSOP, QFN, BGA Net Weight: 280 kgs Placement accuracy: 0.01mm Gross Weight: 360 kgs Max Component Height: 18mm Machine Dimensions: 1288 x 1062 x 1291mm Max Mounting Placement Speed: 16,000CPH Packing Dimensions: 1420 x 1220 x1665mm Component Recognition: High-Resolution Flying Vision Camera System Features of NeoDen K1830: 1. 8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed. 2. Machine runs on highly stable and secure Linux operating system. 3. Double mark cameras to reach at extreme end feeders for better calibration. 4. High resolution and high speed component camera system improves the overall speed of the machine. 5. Ethernet communication interface for all internal signal travel makes the machine to perform more stable and flexible. 6. Closed loop Servo control system with feedback makes the machine to function more accurate. 7. Picking location of pneumatic feeder can be calibrated automatically and promptly, to ensure easy operation and high efficiency. 8. PCB location can be calibrated automatically and promptly, based on the correct and specific placement request.Show more

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
