MAXCUT MCV-4425 RH-20

Price excl. VAT

Compnay LOGO
Images20
MAXCUT MCV-4425 RH-20 Construction - Others
MAXCUT MCV-4425 RH-20 Construction - Others
MAXCUT MCV-4425 RH-20 Construction - Others
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product group
Construction - Others
Brand / model
MAXCUT MCV-4425 RH-20
Year of manufacture
2013
Condition
Used
Machine location
Langley, British Columbia
Country
Canada
Mascus ID
D2D2F120

PRICING

Choose currency

DETAILS

Internal stock no.
120253
Other information

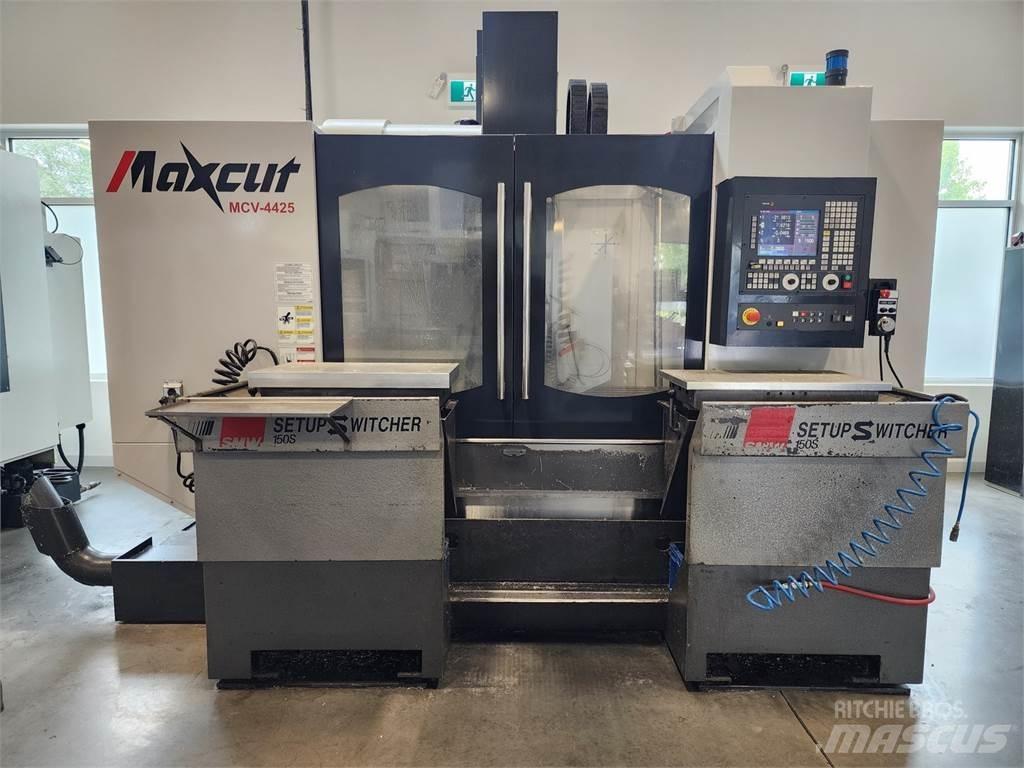

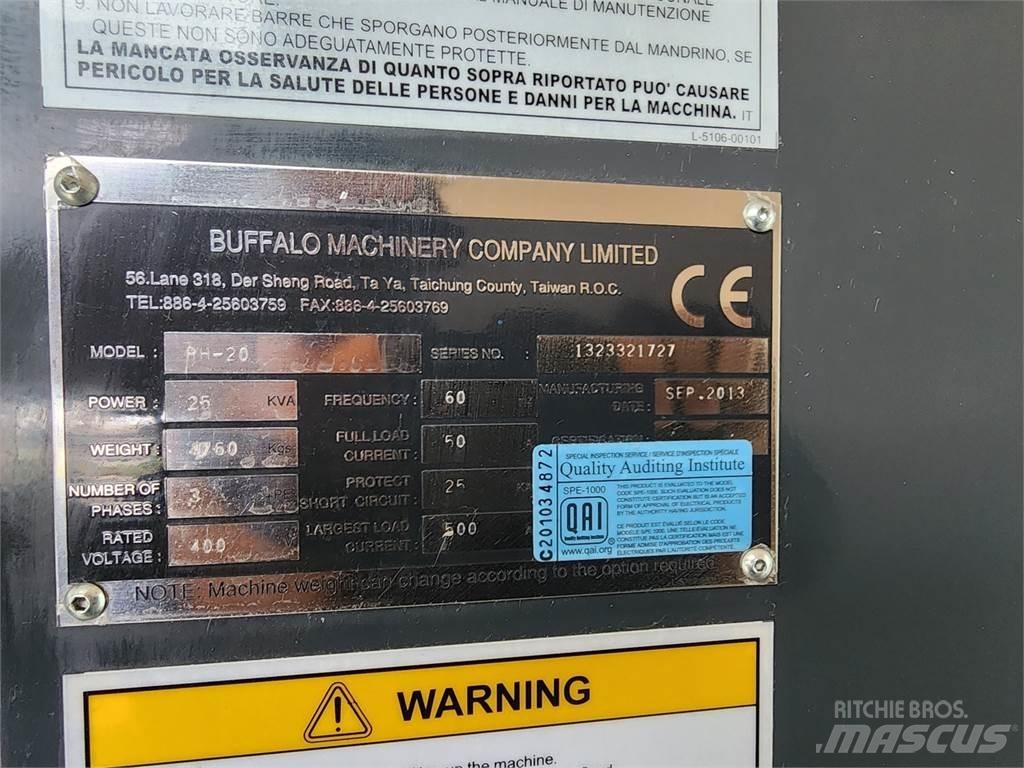

Vertical Machining Center MCV-4425 RH-20 Title: Vertical Machining Center MCV-4425 RH-20 SKU: 120253 Model: MCV-4425 RH-20 Year: 2013 Condition: Used S/N: 1323321727 GeneralSpindle Taper:ISO 40 Table Size:1300 x 600 mm Speed:8000 rpm CNC:Yes ElectricalVoltage:400volts Phase:3-phase Amps:50amps Dimensions: 80.00 (H) x 65.00 (W) x 96.00 (L) inches [VIDEO LINK](... Fagor 8055i/A MC LCD color display - Swing arm type ATC - 24 tools - Wash down system with coolant gun - Through spindle coolant - Full enclosure guard - Rigid tapping - Portable MPG - Heavily ribbed cast iron components - One piece box type base with internal rib design - Fully enclosure & heavy duty metal guarding with removable side doors - Large fully ground work table with 5 T slot - Precision ground ball screw - Heavy-duty box design - Telescopic way covers - Automatic lubrication with low lubrication fault - 210 L coolant tank - Chip auger conveyor - Low voltage circuit system - Heat exchanger - EMC-SCHAFFNER Brand EMC (electromagnetic compatibility) Power: 25 KVA Table Height: 840 mm (33") Table Loading Capacity: 800 kgs (1760 lbs) Travel X Travel: 1120 mm (44") Y Travel: 635 mm (25") Z Travel: 610 mm (24") Spindle Spindle Bearing Inside Diameter: 70 mm (2.756") Center to Column: 675 mm (26.58") Nose to Table: 30-640 mm (1.18"-25.19") Motors Spindle: 15/18.5 hp X Axis Motor Torque: 14.84 Nm Y Axis Motor Torque: 14.84 Nm Z Axis Motor Torque: 27.34 Nm Coolant Pump: 3/4 hp Automatic Tool Changer Tool Number: 24 Tool Taper: Cat 40 Tool Select by Shortest Path: Bi-directional Max. Tool Weight: 8 kg / 17.6 lbs Max. Tool Diameter: 130 mm (5.12") Max. Tool Diameter (Adjacent Pocket): 70 mm (2.76") Max. Tool Length: 300 mm (11.81") Performance Rapid Traverse X/Y/Z: 24 m/min (1000 ipm) Feed Rate X/Y/Z: 15 m/min (600 ipm) Positioning Accuracy: +/- 0.005 mm (+/- 0.0002") Repeatability: +/- 0.002 mm (+/- 0.00008") Dimensions & Weight Length x Width x Height: 3.3 x 2.5 x 2.8 m (132 x 100 x 112 in.) Weight: 4760 kgs Floor Space: 5.27 x 3.25 m (207 x 128 in.) - **S M W Setup switcher model 150S not includedShow more

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
