INFO

Product group
Construction - Others
Brand / model
SCM minimax sc 4e
Condition
Used
Machine location
Langley, British Columbia
Country
Canada
Mascus ID
5FB69789

PRICING

Choose currency

DETAILS

Internal stock no.
90100
Other information

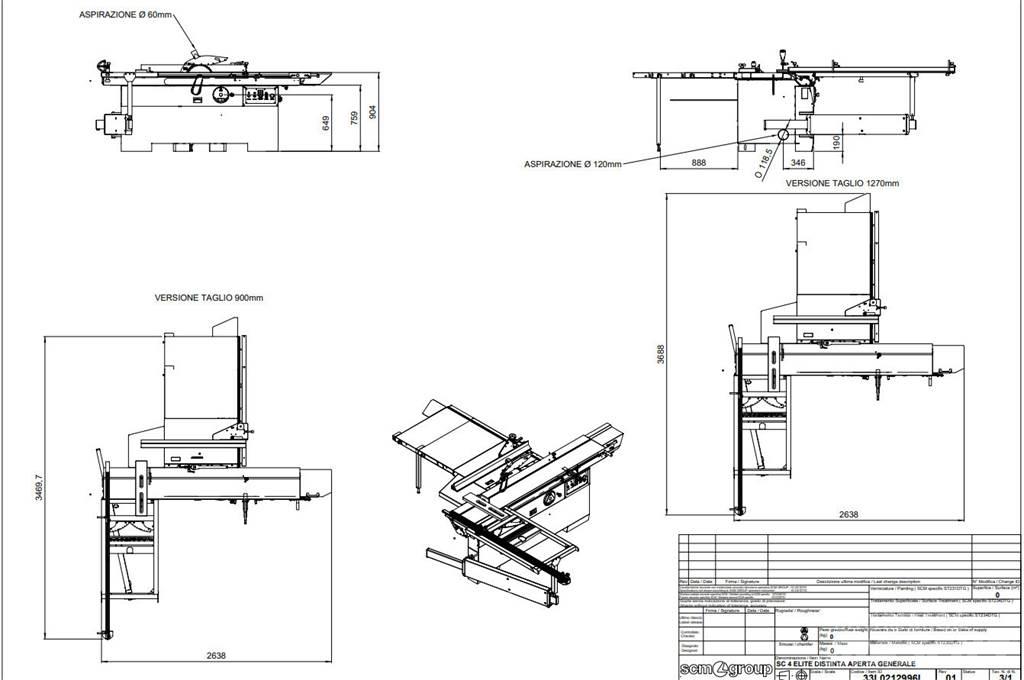

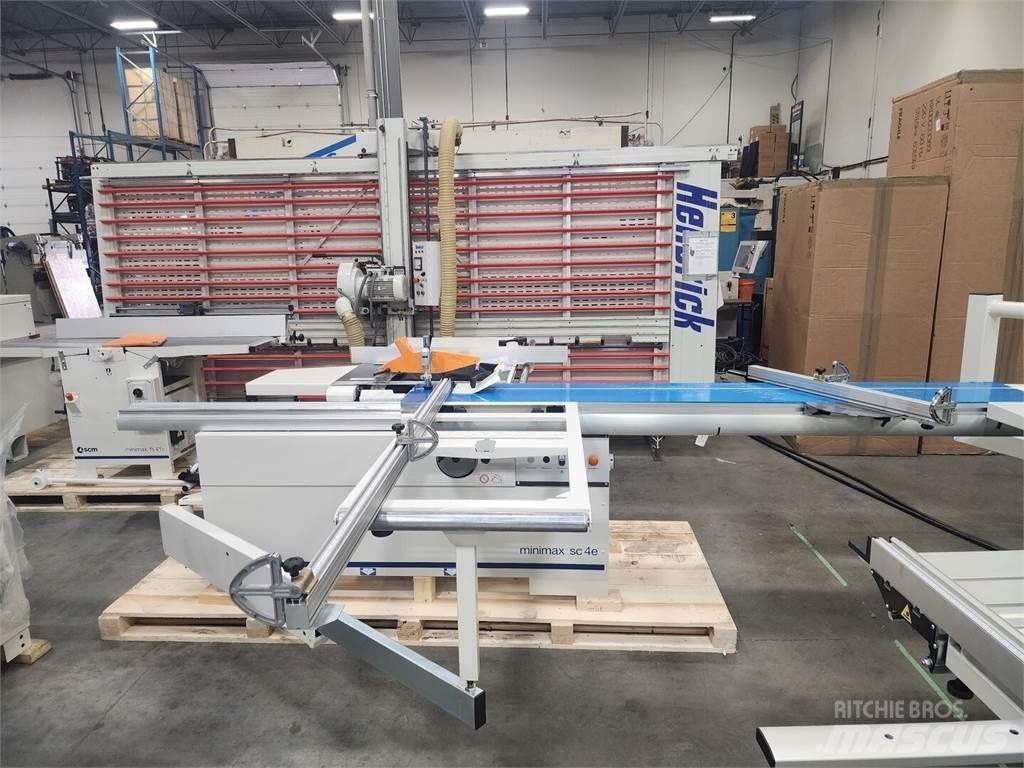

minimax sc 4e Circular Saw with Tilting Blade Title: minimax sc 4e Circular Saw with Tilting Blade SKU: 90100 Model: minimax sc 4e Condition: New GeneralHorsepower:4.8hp Table Size:33" x 22" Blade Diameter:12 Voltage:220volts Phase:Single-phase Saw Type:Sliding Saw CNC:No Made In: ITALY Dimensions: 43.70 (H) x 188.00 (W) x 237.80 (L) inches Cast iron saw-spindle moulder worktable dim.: 840 x 560 mm Blades Tilting: 90 / 45 deg Max. Saw Blade w/ Scoring Blade Installed: 315 mm Max. Saw Blade Projection from Table at 90 / 45 deg: 100/71 mm - 3.94/2.75 in. Max. Squaring Stroke: 2600 mm Cutting width with parallel fence: 1270 mm Additional Features - Belt driven scoring unit complete with blade: - With external setting up - Blade diameter 100 mm Z 20 - "Dado set" capability: - (Tools with max. diameter 203.2 mm / 8" excluded) - The machine is supplied with saw spindle, 5/8" diameter (1 on si 315es and si 400es) - Angular cutting device with flip-over stops, equipped with: - Telescopic fence with two flip-over stops - pre-set for angle rapid selection - Additional table on the sliding table, for the support of panels with large dimensions - Triple wall for 2600 mm sliding table [PDF Brochure](... Footprints](...Show more

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
