INFO

Product group
Construction - Others
Brand / model
SCM class si 350
Condition
Used
Machine location
Langley, British Columbia
Country
Canada
Mascus ID
FDE76BD7

PRICING

Choose currency

DETAILS

Internal stock no.
90111
Other information

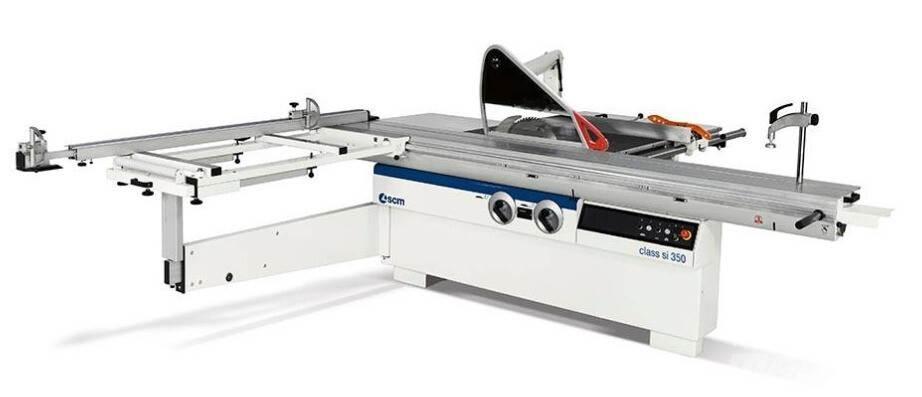

class si 350 Circular Saw w/ Tilting Blade Title: class si 350 Circular Saw w/ Tilting Blade SKU: 90111 Model: class si 350 Condition: New GeneralHorsepower:11hp Table Size:1040 x 630 mm Blade Diameter:350 mm Voltage:600volts Phase:3-phase Saw Type:Sliding Saw CNC:No Made In: ITALY Dimensions: 82.70 (H) x 166.73 (W) x 268.70 (L) inches Max Cutting Height at 90o: 118 mm Max Cutting Height at 45o: 81 mm Blade Tilt: 45 degrees Blades Lifting and Tilt: Manual Main Blade Rotating Speed: 4000 rpm Scoring Unit Rotating Speed: 8500 rpm Scoring Unit Motor Power (S6 -40%): 1.3 kW (1.7 hp) Squaring Capacity w/ 3200 mm Carriage: 3200 x 3200 mm Cutting Width on Parallel Fence: 1500 mm Exhaust Outlet Diameter: - At the Base: 120 mm - On Overhead Protection: 100 mm - On Riving Knife: 60 mm Basic Machine Net Weight: 1050 kg Standard Equipment and Options - Lifting and tilting of saw unit means of handwheels on the machine front side and mechanical readout of saw unit tilt - Anodized aluminium alloy sliding carriage on high precision "arch-formed" hardened steel guides, which are fixed on the carriage by means of mechanical bending system - Eccentric clamp - Squaring frame the fast fence positioning of angular cuttings - Outfeed table extensions - Sliding carriage length 3200 mm - Manual parallel fence with position readout on metric rule, sliding system on 40mm steel bar and micrometric adjustment - Independent powered scoring unit external setting up and stops for a quick re-positioning of the blade Additional Features - Motor Start/Stop Pushbuttons (integrated in the sliding carriage for saw and scoring blade) - Fence for angular cutting - Seaworthy packing [PDF Brochure](... Footprints](...Show more

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
