INFO

Product group
Construction - Others
Brand / model
MVD D400-4300
Condition
Used
Machine location
Langley, British Columbia
Country
Canada
Mascus ID
D8FAB93D

PRICING

Choose currency

DETAILS

Internal stock no.
29795
Other information

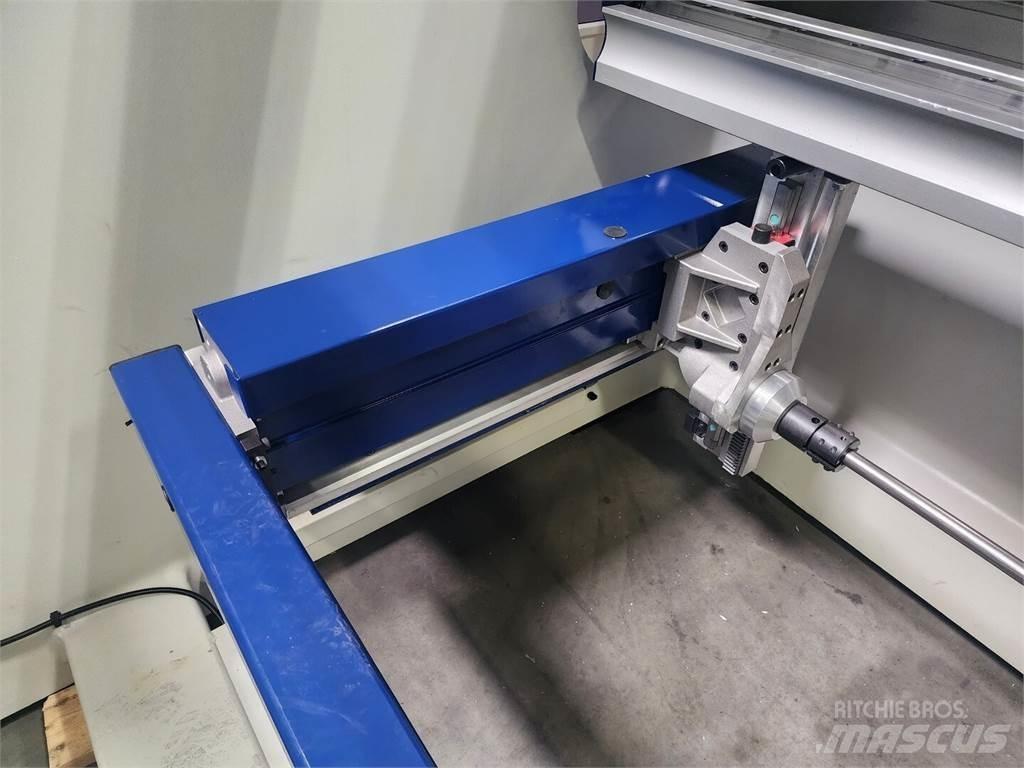

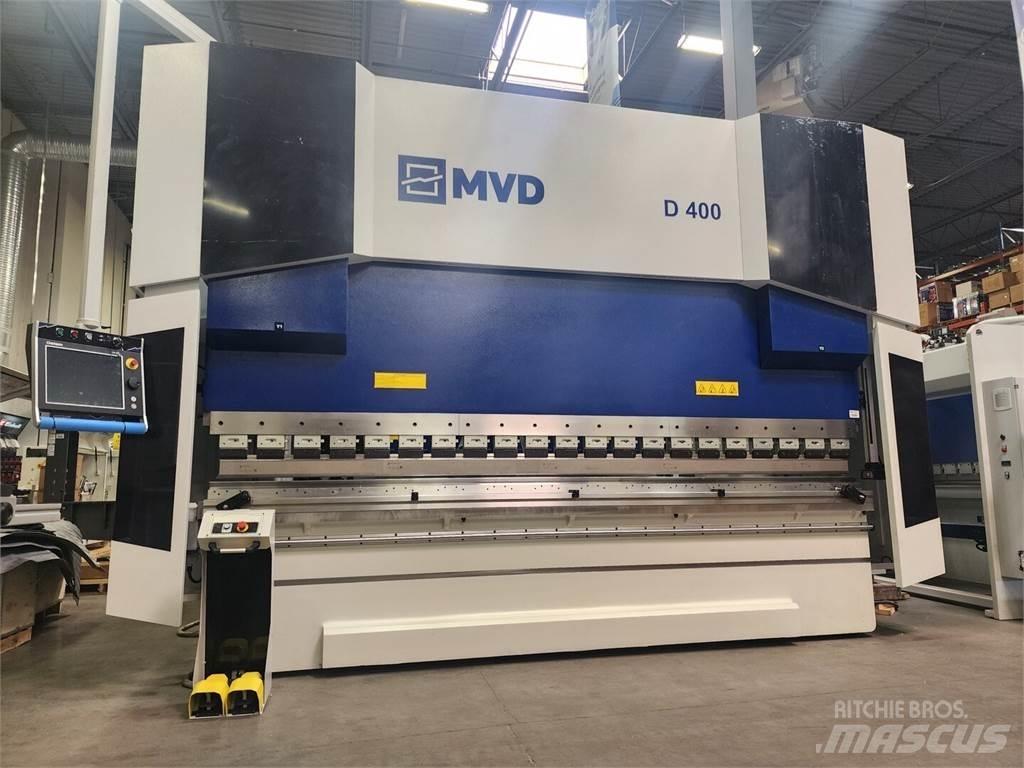

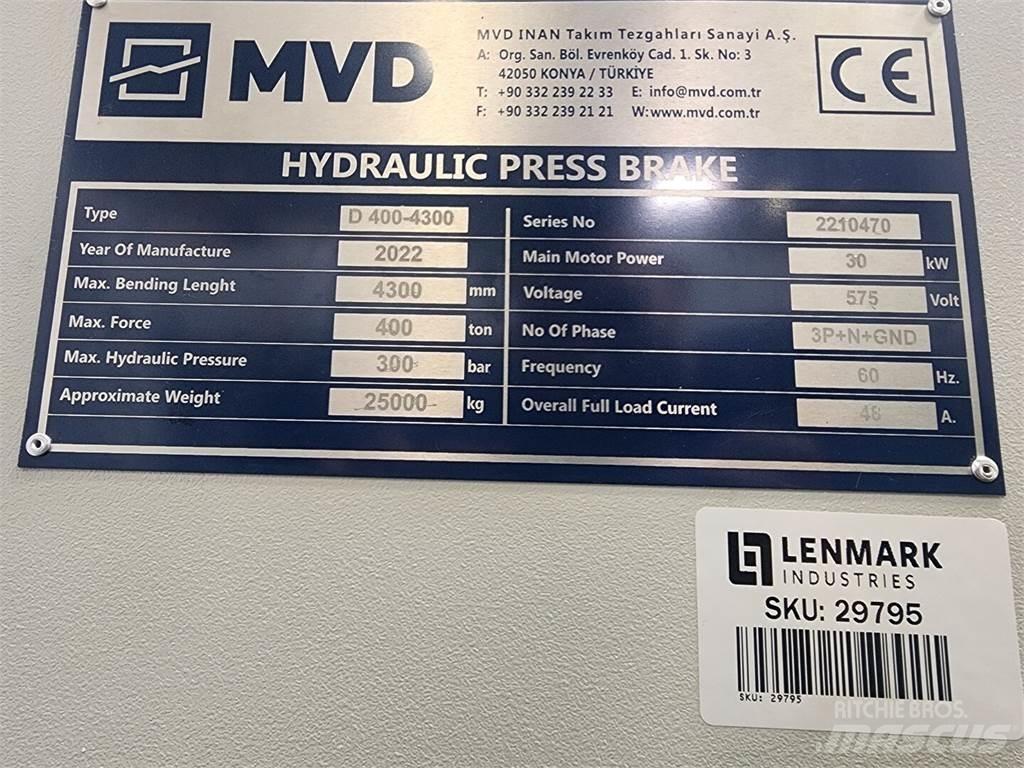

400 ton iBend Hydraulic Press Brake D-Series D400-4300 Title: 400 ton iBend Hydraulic Press Brake D-Series D400-4300 SKU: 29795 Model: D400-4300 Condition: New GeneralBed Length:4300 mm / 169.29 in. Tons:400ton Brake Type:Hydraulic CNC:Yes ElectricalVoltage:600volts Phase:3-phase Dimensions: 141.73 (H) x 109.84 (W) x 255.90 (L) inches Throat: 510 mm Daylight: 635 mm Stroke: 410 mm Distance between columns: 3700 mm Standard Features - Y1, Y2, X, R (4-Axes CNC) - MVD X-Axis Back Gauge, Servo Motorized, ±0.03 mm accuracy, Range X = 750 mm, R = 250 mm - 2x pieces Back Gauge finger, straight, 3 stage, manually movable along the linear guide - T-Channel + American&European Style Quick clamp Promecam top tool holder E20 - 2x pieces Stronger sliding front support arms with hand-wheel D-Type horizontal adjustment - MVD special narrow bottom table - Standard Punch ES 1281 (H: 104°, R: 0.8) - Standard Die ES 2067 (60x60 mm, 4 channels V = 16-22-35-50 mm, 85°, H:60) - 2019 D-Series full cabin cover with aluminium controller arm - Double Pedal (Press Up&Down) - P3 - Stronger Type 2 motorized crowning with WILA (Holland) wedges - Encoder - Linear Scales: GIVI - LED illumination on RAM - Electric components: Schneider 575-600V/ 60 Hz - Hydraulic: Hoerbiger (HAWE) Blok - Electric cabin: VDE - Pump: Eckerle - Driver: Mitsubishi / LS Electric Additional - Delem DA-69T, 17" Touch Screen, 3D Graphical, (3-12 Axes) *.dxf with Profile-T3D Offline programming software 3D - 300mm Large bottom table for multi Vee die + IW: 70mm EU Die holder - MSD front safety lasers + rear light beamsShow more

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
