INFO

Product group
Construction - Others
Brand / model
MVD D320-3700
Condition
Used
Machine location
Langley, British Columbia
Country
Canada
Mascus ID
E03853C6

PRICING

Choose currency

DETAILS

Internal stock no.
29794
Other information

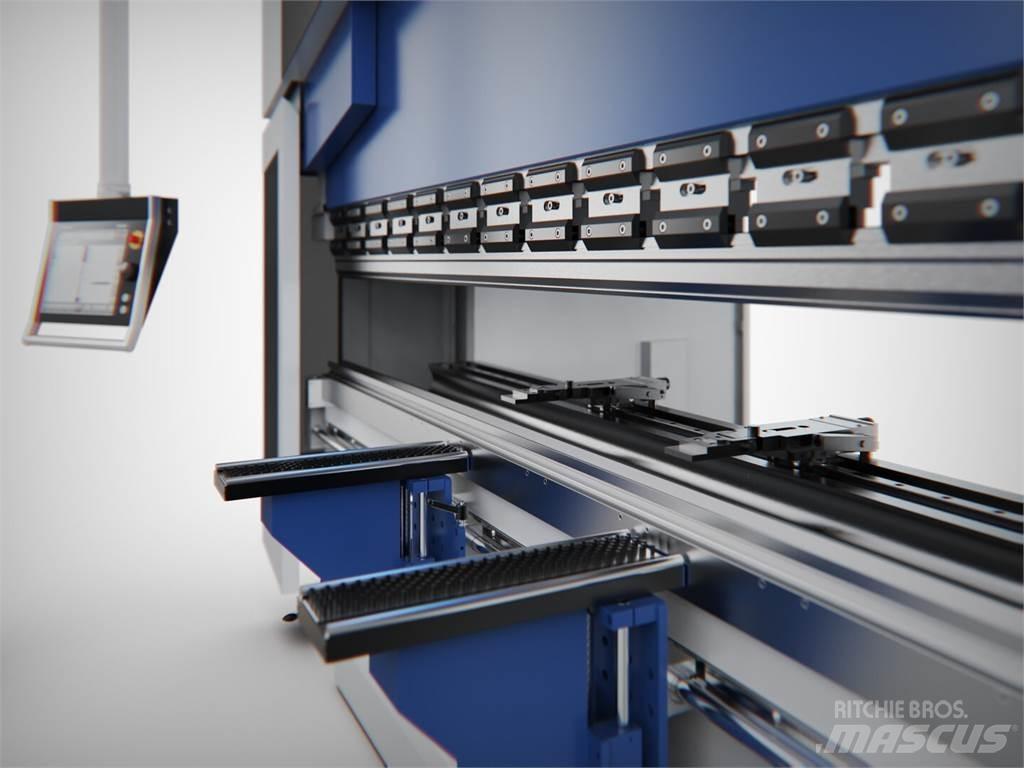

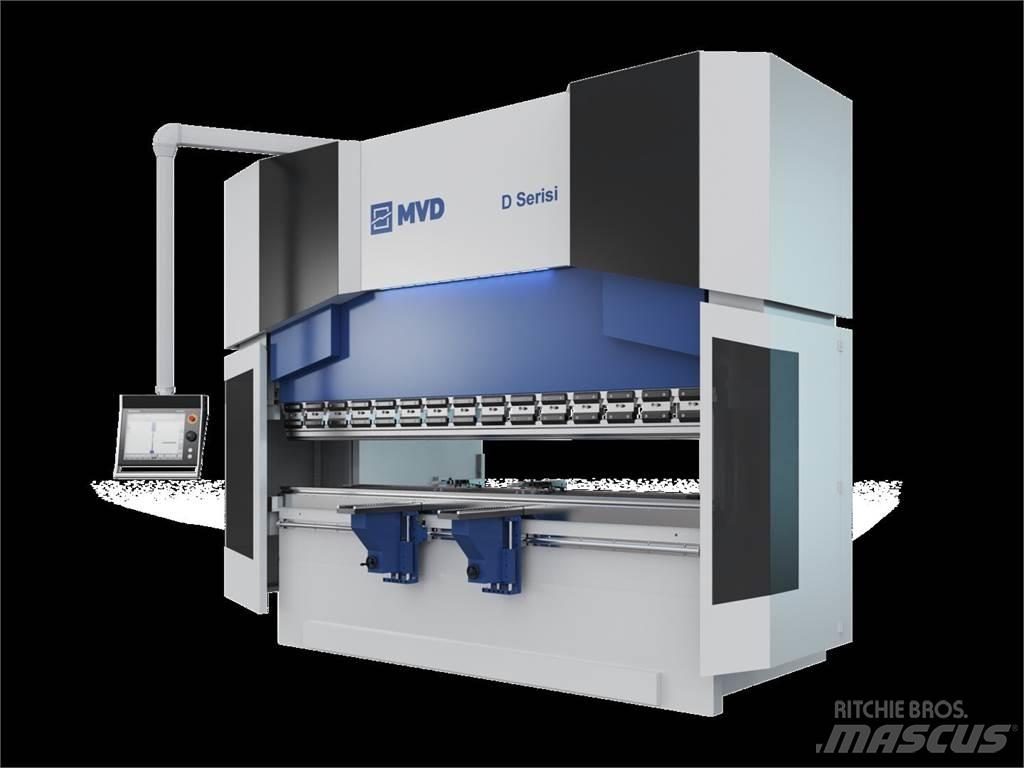

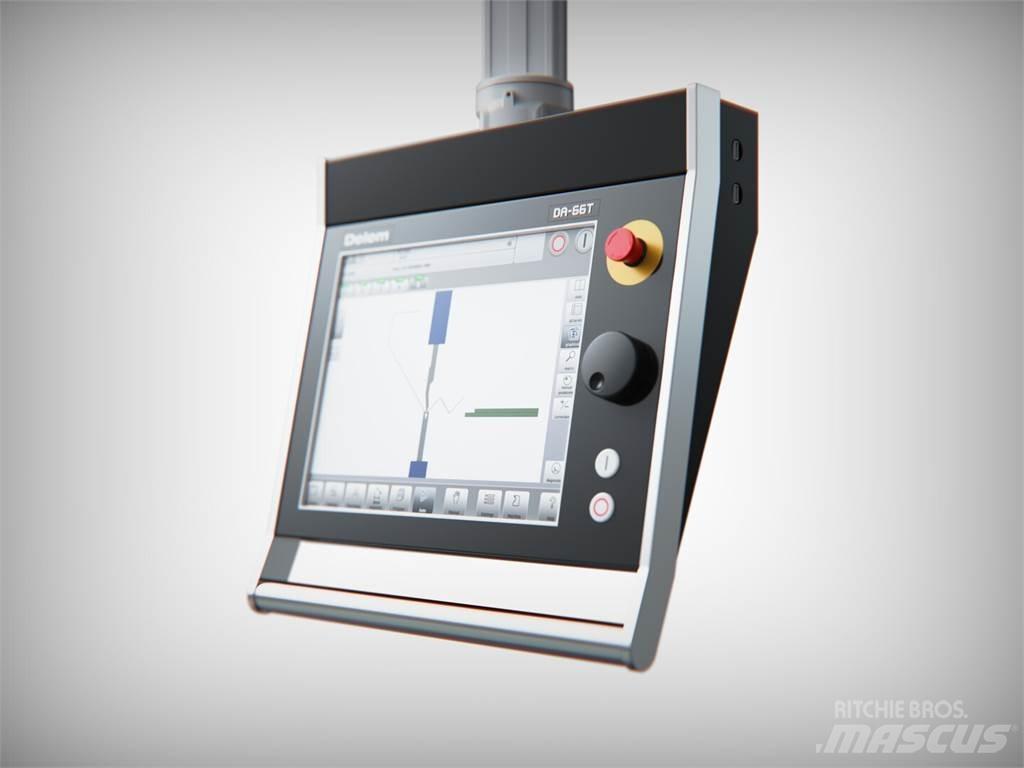

320 ton iBend Hydraulic Press Brake D-Series D320-3700 Title: 320 ton iBend Hydraulic Press Brake D-Series D320-3700 SKU: 29794 Model: D320-3700 Condition: Used GeneralBed Length:3700 mm / 145.67 in. Tons:320ton Brake Type:Hydraulic CNC:Yes ElectricalVoltage:600volts Phase:3-phase Dimensions: 135.43 (H) x 101.18 (W) x 297.64 (L) inches Throat: 510 mm Daylight: 635 mm Stroke: 410 mm Distance between columns: 3200 mm Features - Y1, Y2, X, R (4-Axes CNC) - ESA S 650 CNC Control Unit - MVD X-Axis Back Gauge, Servo Motorized, ±0.03 mm accuracy, Range X = 750 mm, R = 250 mm - 2x pieces Back Gauge finger, straight, 3 stage, manually movable along the linear guide - European Style Quick clamp Promecam top tool holder E7 - 2x pieces Stronger sliding front support arms with hand-wheel D-Type horizontal adjustment - MVD special narrow bottom plate (European Type) - Standard Punch ES 1260 (H: 67, 85°, R: 0.8) - Standard Die ES 2067 (60x60 mm, 4 channels V = 16-22-35-50 mm, 85°, H:60) - 2019 D-Series full cabin cover with aluminium controller arm - Double Pedal (Press Up&Down) - P3 - Stronger Type 2 motorized crowning with WILA (Holland) wedges - Encoder - Linear Scales: GIVI - LED illumination on RAM - Electric components: Schneider 575V/ 60 Hz - Hydraulic: Hoerbiger (HAWE) Blok - Electric cabin: VDE - Pump: Eckerle - Driver: Mitsubishi / LS Electric - iBend - Back Gauge MVD (X1+X2+R1+R2+Z1+Z2 ATFL) - SERVO Motorised - Delem DA-69T, 17" Touch Screen, 3D Graphical, (3-12 Axes) *.dxf with Profile-T3D Offline programming software 3D - Wila Hydraulic Punch NSCL-II-HC/UPB - PREMIUM - Max. load 250 t/m - Wila Hydraulic Die NSCR-II-HC (PREMIUM) *Motorised crowning included* - CE Conformity: AKAS II front safety lasers+PLC+rear light beams - non-CE MSD front safety lasers + rear light beamsShow more

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
