INFO

Product group
Construction - Others
Brand / model
MVD A40-1250
Condition
Used
Machine location
Langley, British Columbia
Country
Canada
Mascus ID
635CDE4E

PRICING

Choose currency

DETAILS

Internal stock no.
29790
Other information

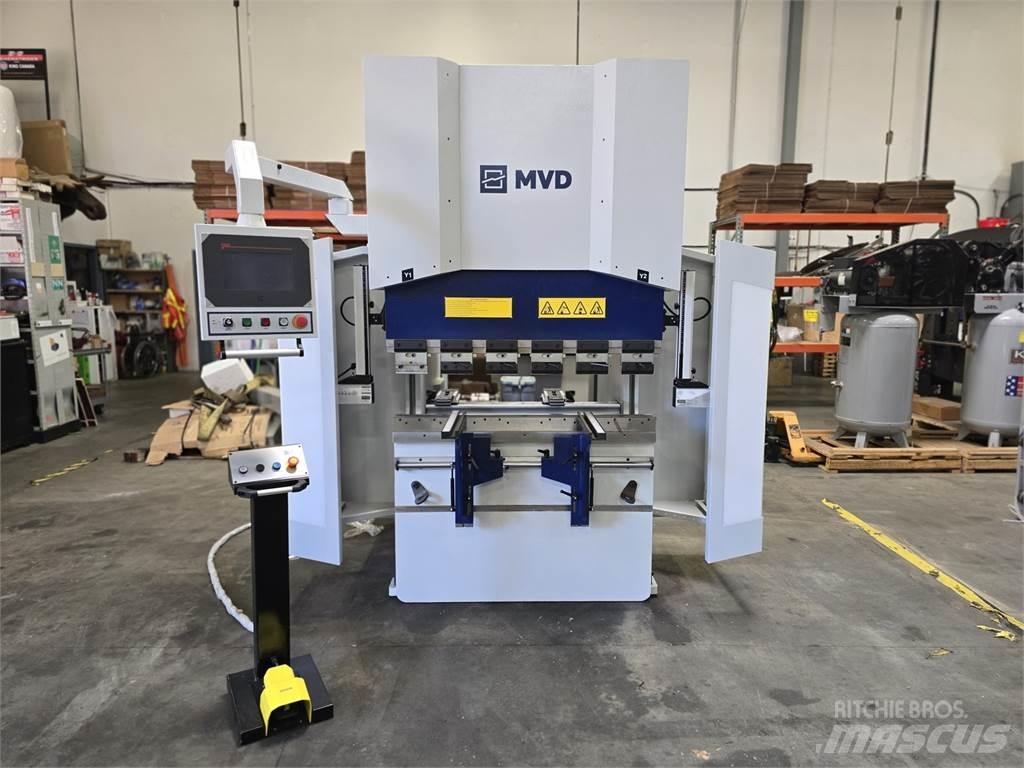

40 ton iBend Hydraulic Press Brake A-Series A40-1250 Title: 40 ton iBend Hydraulic Press Brake A-Series A40-1250 SKU: 29790 Model: A40-1250 Condition: New GeneralBed Length:1250 mm / 4.1 ft. Tons:40ton Brake Type:Hydraulic CNC:Yes ElectricalVoltage:575volts Phase:3-phase Dimensions: 107.48 (H) x 86.42 (W) x 120.47 (L) inches Distance between columns: 1100 mm / 43.31 in. Stroke: 210 mm / 8.27 in. Daylight: 415 mm / 16.34 in. Throat: 410 mm / 16.14 in. Table Height: 885 mm / 34.84 in. Standard Features - Y1, Y2, X+R (4 axis with X = 750 mm and R = 250 mm) - CNC unit: Esa S630 (10") Touch screen 2D Graphical (3-4 Axes) - MVD motorised backgauge with ball screws, linear guided, AC Motor and inverter - Magnetic Linear Scales (Turkiye) - 2 Pcs backgauge fingers, manually movable along linear guide, precisely adjusted - Side safety doors and cylinder covers - HAWE=Hoerbiger (Germany) hydraulic blocks with proportional valves - Eckerle (Germany) oil pump, internal gear type - Promecam European type "manual clamping" system - Narrow Bottom table. IW = 60 mm (+10 mm spacer) - Top Tool: Eurostamp 1260, H:67, 85o, R:0.8 - Bottom Die: Eurostamp 2067, 4 way V=16-22-35-50 mm, 85o, H:60 - 2 Pcs sliding front supportsShow more

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
