MAXCUT MCV-1100

Price excl. VAT

Compnay LOGO
Images20
MAXCUT MCV-1100 Construction - Others
MAXCUT MCV-1100 Construction - Others
MAXCUT MCV-1100 Construction - Others
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product group
Construction - Others
Brand / model
MAXCUT MCV-1100
Year of manufacture
2017
Condition
Used
Machine location
Langley, British Columbia
Country
Canada
Mascus ID
B294CCD7

PRICING

Choose currency

DETAILS

Internal stock no.
120258
Other information

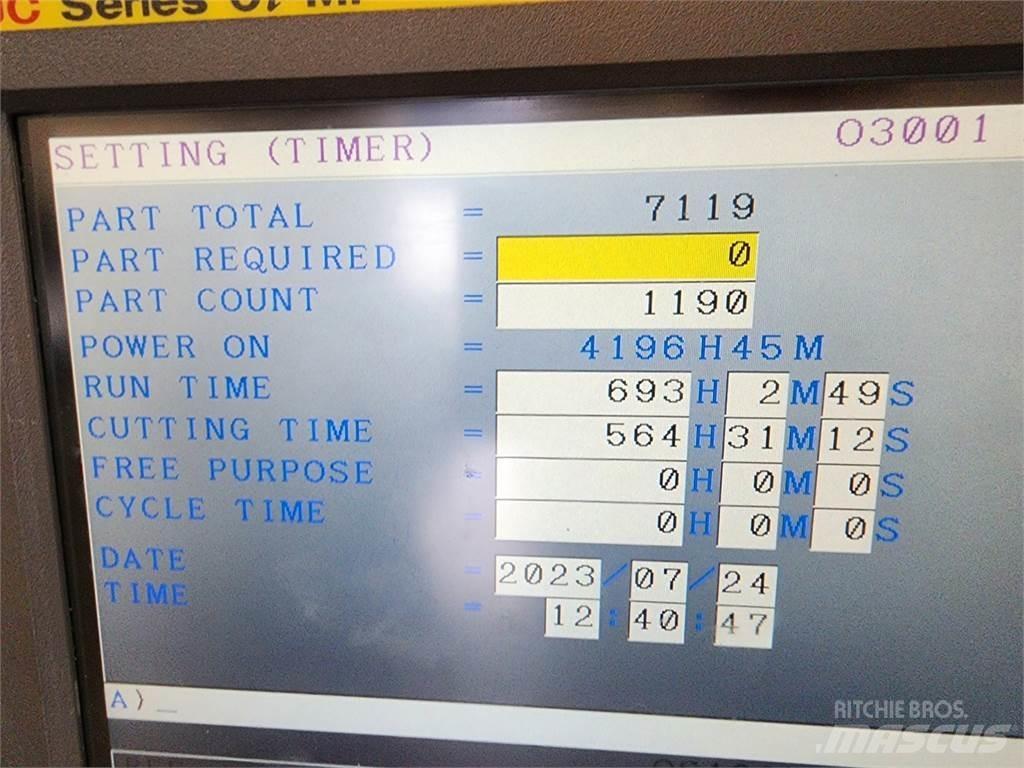

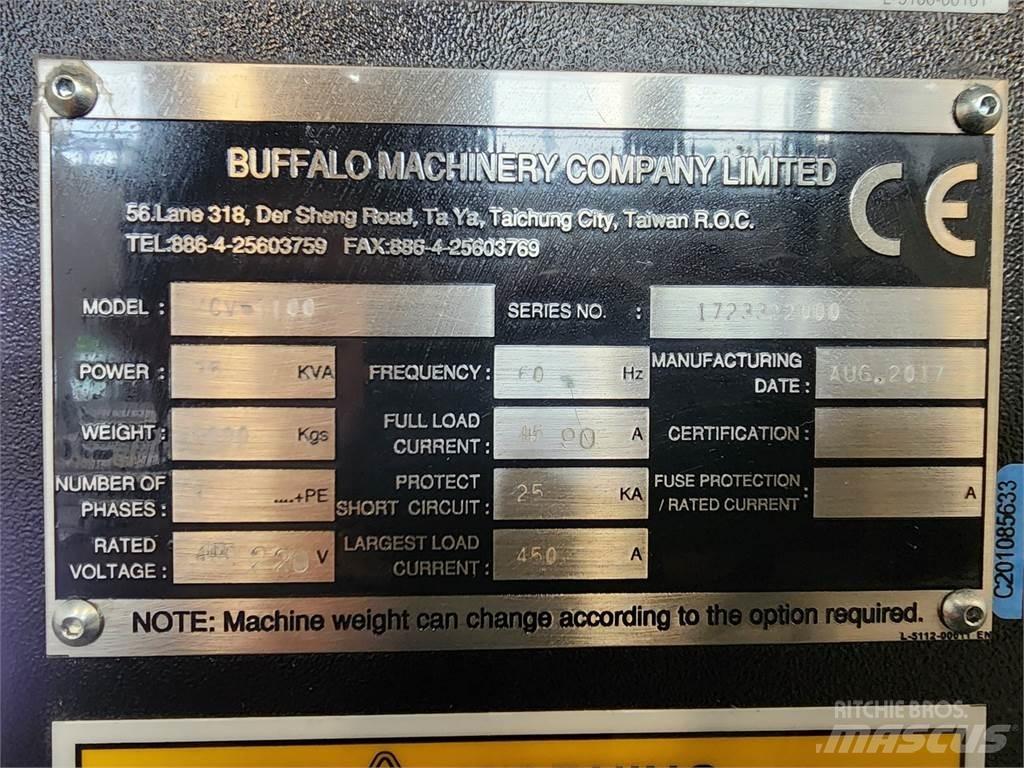

CNC Machining Center MCV-1100 Title: CNC Machining Center MCV-1100 SKU: 120258 Model: MCV-1100 Year: 2017 Condition: Used S/N: 1723322000 GeneralSpindle Taper:ISO 40 Table Size:1300 x 600 mm Speed:10000 rpm CNC:Yes Run Time:693hrs ElectricalVoltage:220/440volts Phase:3-phase Amps:90/45amps Dimensions: 80.00 (H) x 60.00 (W) x 85.00 (L) inches [VIDEO LINK](... Fanuc Series 0i-MF Control - Built-in engraving functions: X/Y engraving and X/A engraving if 4th Axis installed - Conversational to G-code conversion feature allows programming without G-code - Quick programming helical taper interpolation or helical taper threading - Inside/outside taper threading/boring cycle - Swing arm type tool changer - Wash down system with coolant gun - Heavy-duty box way design - Through spindle coolant - Chip conveyor Power: 15 kVA Cutting Time: 564 hrs Table Height: 840 mm (33") Table Loading Capacity: 800 kgs (1760 lbs) X-Travel: 1120 mm (44") Y-Travel: 635 mm (25") Z-Travel: 602 mm (23.7") Spindle Center to Column: 675 mm (26.58") Nose to Table: 115-717 mm (4.5" - 28.25") Motor: 15/20 hp X Axis Motor Torque: 14.84 Nm Y Axis Motor Torque: 14.84 Nm Z Axis Motor Torque: 27.34 Nm Coolant Pump Motor: 3/4 hp Arm Style ATC Number of Tools: 24 Tool Taper: CAT 40 Tool Select by Shortest Path: Bi-direcitonal Max. Tool Weight: 8.9 kgs (17.6 lbs) Max. Tool Diameter: 130 mm (5.12") Max. Tool Diameter (Adjacent Pocket): 70 mm (2.76") Max. Tool Length: 300 mm (11.81") Performance Rapid Traverse X/Y/Z: 24 m/min (1000 ipm) Feed Rate X/Y/Z: 15 m/min (600 ipm) Positioning Accuracy: +/- 0.005 mm (+/- 0.0002 in.) Repeatability: +/- 0.002 mm (+/- 0.00008 in.) Dimensions & Weights Length x Width x Height: 3.3 x 2.5 x 2.8 m (132 x 100 x 112 in.) Machine Weight: 5000 kg Chip Conveyor Weight: 245 kg Floor Space: 5.27 x 3.25 m (207 x 128 in.)Show more

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Canada
