Product group
Construction - Others
Brand / model
Fasoli 3642
Year of manufacture
2024
Machine location
Camrose, Alberta
Country
Canada
Mascus ID
7A55A4CB

DETAILS

Other information

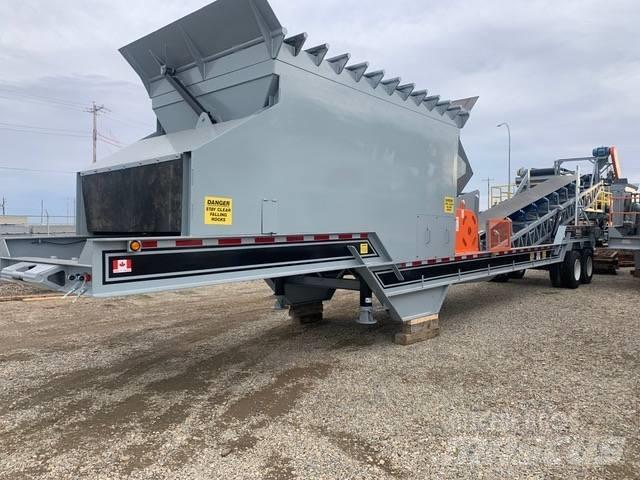

FRAME: • 18" @ 55 WF Main Frame • Tandem Axle Running Gear • 11 X 22.5 Tubeless Radial Tires • Mud Flaps, Lights • Two Hydraulic Landing Gear 12 Volt HOPPER: • 14' X 8' Feed Hopper - 3/8" Plate - Self Relieving • 3/8" AR Plate Liner Bottom 24" • Hydraulic Grizzly, @ 12" Opening • Wing Walls to 8' Overall Width • Closed Sides Included • Hydraulic Grizzly Dump 36" FEED CONVEYOR: • 16' Feed Conveyor c/w 6" Impact Rollers @ 9" Centres • 2 7/16 Shaft & Bearings - Slide Out for Service • 16" Lagged Head Pulley - 2 15/16 Shaft • Double Row Pillow Block Bearings • 14" Self-Clean Tail Pulley - 2 15/16 Shaft • 1/4" Face Feeder Belt, Vulcanized Splice • 10 HP Electric Drive VFD NOT Included • Planetary Drive 2020 • CH 160 Cottered Chain 42" DELIVERY CONVEYOR • Adjustable Raise/Lower End Delivery Conveyor • Lattice Construction • FLI 5" Troughing Idlers @ 36" Centres • 1/4" Face, 3-Ply Conveyor Belt, Vulcanized Splice • 14" Lagged Head Pulley - 2 15/16 Shaft • 14" Self-Cleaning Tail Pulley - 2 15/16 Shaft • #5 Reducer Complete • 20 HP 1800 RPM TEFC Electric Motor • Self-Clean Return Rollers • Impact Bed at the Load Zone • Primary Belt Scraper (Flexco) CABLE NOT INCLUDEDShow more

DSW Equipment (2023) Ltd.

3750 43 Avenue T4V 3S8 Camrose Alberta Canada
