Bell B45E

Price excl. VAT

Compnay LOGO
Images25

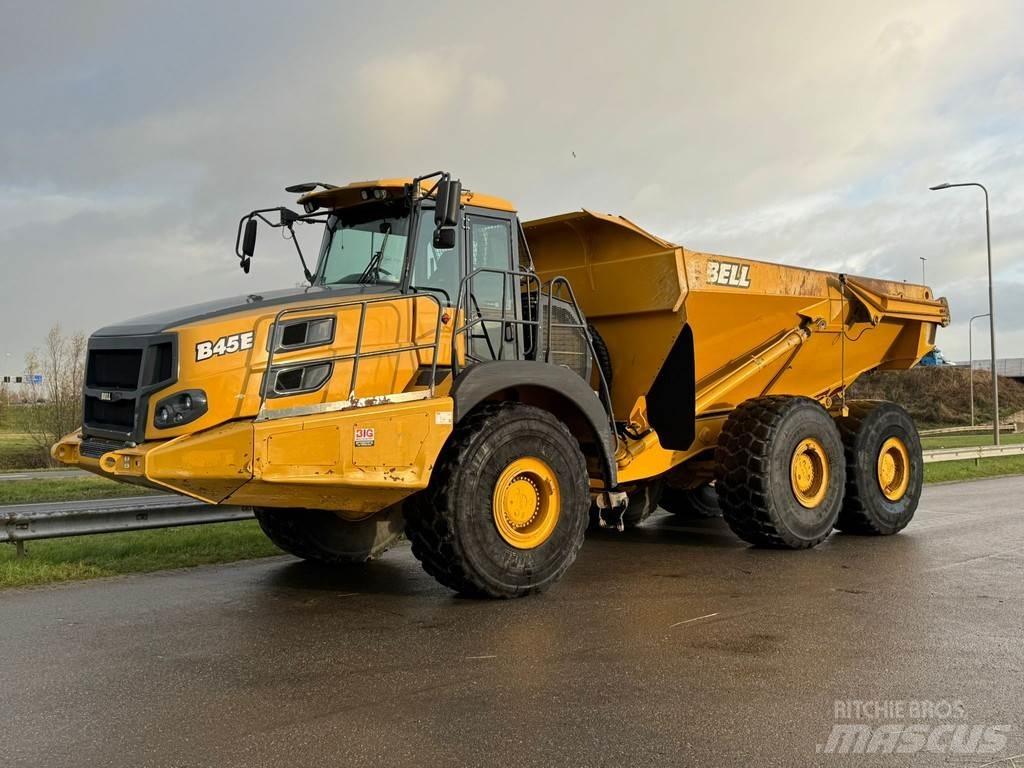

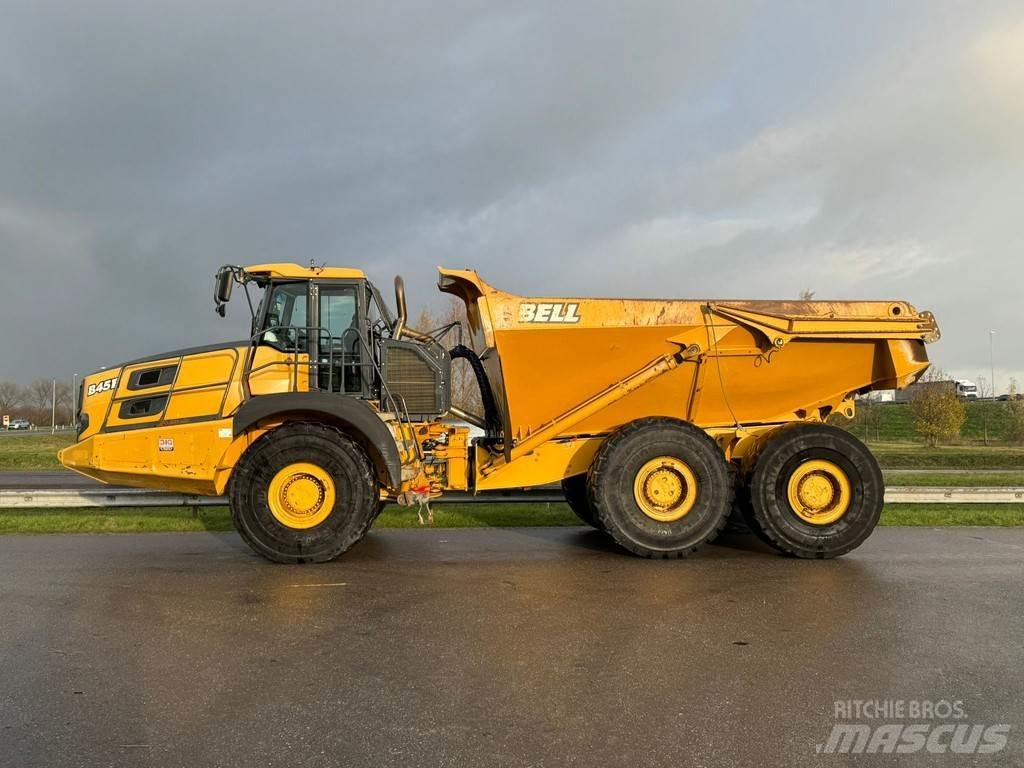

Bell B45E Articulated Dump Trucks (ADTs)
Bell B45E Articulated Dump Trucks (ADTs)
Bell B45E Articulated Dump Trucks (ADTs)
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product group
Articulated Dump Trucks (ADTs)
Brand / model
Bell B45E
Year of manufacture
2017
Hours of use
9,700 h
Machine location
BIG 1 BIG Machinery B.V. (Schiemerik 1)
Country
Netherlands
Mascus ID
46C696B1

PRICING

Choose currency

DETAILS

Internal stock no.
00033059
Manufacturing / Serial number
B93A645EC01205794
Axle configuration
6x6
Engine output
371 kW (504 hp)
Production country
Germany
Certificates
CE
Other information
2017 Bell B45E Dump truck for sale. The Bell B45E is used in Germany by one single owner. CE certified Introducing the Bell B45E, the ultimate solution for heavy-duty transport in construction, mining, and infrastructure projects. This articulated dump truck combines unmatched performance with user-friendly features, designed to tackle the most demanding work environments. Key Features: Engine and Performance: Mercedes-Benz OM471LA: 390 kW (523 hp) of raw power at 1700 rpm. Outstanding torque performance with 2460 Nm at 1300 rpm. Environmentally friendly, meeting EU Stage IIIA / EPA Tier 3 emission standards. Advanced Drivetrain: Allison 4700 ORS Transmission: Fully automatic gearbox with 7 forward and 1 reverse gear. Hydrodynamic torque converter with lock-up in all gears. Rugged Build: Advanced hydraulic system with a maximum pressure of 315 bar. Powerful dual hydraulic cylinders for quick dump cycles: 11 seconds up, 6 seconds down. Maximum tipping angle of 70 degrees, programmable for specific tasks. Capacity and Efficiency: Payload: Up to 41,000 kg. Dump body with a capacity of 25 m³ (SAE 2:1), expandable to 26 m³ with an optional tailgate. Comfort and Safety: ROPS/FOPS-certified cab with a low noise level of 76 dBA. Deluxe interior with a 10-inch LCD screen for all vehicle statistics. Optional Comfort Ride suspension and air conditioning for long workdays. Why Choose the Bell B45E? Lower operating costs thanks to efficient fuel consumption and maintenance-friendly components. Advanced traction control and automatic braking systems for maximum safety and performance. Ideal for various terrains, from sand to heavy clay. Are you ready to elevate your productivity to the next level? Contact us for more information or a test drive! = More information = Drive: Wheel Tyre manufacture / size: 29.5R25Show more
