Grove GMK4075

Price excl. VAT

Compnay LOGO
Images9

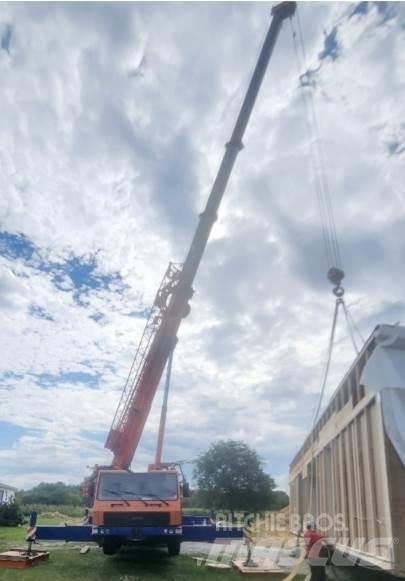

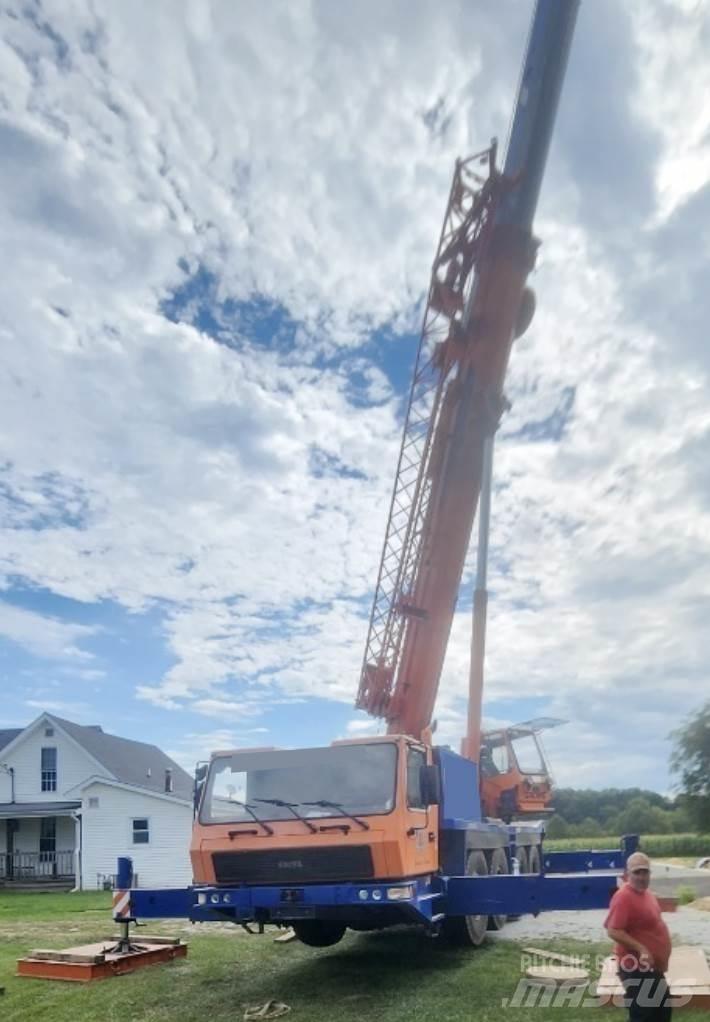

Grove GMK4075 All terrain cranes
Grove GMK4075 All terrain cranes
Grove GMK4075 All terrain cranes
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product group
All terrain cranes
Brand / model
Grove GMK4075
Year of manufacture
2004
Machine location
Indiana, USA, Indiana
Country
United States
General grade
1
2
3
4
5
Mascus ID
73C93FC6

PRICING

Choose currency

DETAILS

Internal stock no.
968
Maximum lift capacity
90,000 kg
Maximum lift height
4,298 cm
Attachments
https://freecranespecs.com/Grove/GMK4075
Other information
2004 Grove GMK4075, 90 Ton (75 Metric Tons), All Terrain Crane; CranesList ID: 968, 36.-141’ Five Section Full Power Boom with patented TWIN-LOCK boom pinning system with Auxiliary Lifting Sheave, 32'- 56' hydraulic off-settable lattice Swing Away Extension (Jib). Hydraulically off-settable lattice 5°-40° with hydraulic luffing under load, Main and Auxiliary Winches with 16mm Wire Rope, Drum Rotation Indicator, Load Moment and independent anti-two block system with audio visual warning and control lever lock-out. These systems provide electronic display of boom angle, length, radius, tip height, relative load moment,maximum permissible load, load indication and warning of impending two-block condition with lock-out hoist function, Control System: Full electronic control of all crane movements using electrical control levers with automatic reset to zero. Integrated with the LMI and engine management system by CAN-BUS. ECOS system with graphic display, Hook Ball and Hook Block, 36,400# Total Counterweights with Hydraulic Removal removal system controlled from the superstructure cab, All aluminum constructed Operator's cab: full vision, tiltable (-5° to +15°), safety glass, adjustable operator’s seat with hydraulic suspension, engine-independent heater.Armrest-integrated crane controls. Ergonomically arranged instrumentation and crane operating controls. Drive/steer controls. 8.3' wide Grove Two-man Carrier Cab, Aluminium, 2-man-design, safety glass, driver and passenger seat with hydraulic suspension, engine-dependent hot water heater. Complete instrumentation and driving controls, 8 x 6 x 8 Drive/Steer Carrier, Mercedes-Benz OM 501 LA 390HP, Six Cylinder Water Cooled, Turbocharged, Diesel Engine, ZF, AS Tronic, 12 Speeds Forward, 2 Reverse. 2 Speed Transfer Case Transmission, Front and Rear Tires: 14.00 R25, Grove exclusive MEGATRAK Suspension, 4 double hydraulically telescoping beams with vertical cylinders and outrigger pads. Independent horizontal and vertical movement control on each side of the carrier. Electronic level indicator, Recent Repairs: New clutch, bell housing, brakes and drums, tie rod ends, suspension forks and rod and mains in 2019. New cable in 2022. This crane is in great shape for the years and hours, Certified, ... IN INDIANA! Show more
