Rinieri EL 170

Price excl. VAT

Images1Videos1

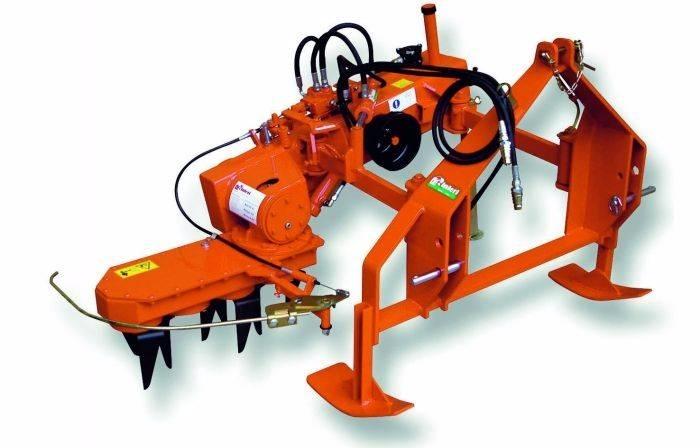

Rinieri EL 170 Power harrows and rototillers
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product group
Power harrows and rototillers
Brand / model
Rinieri EL 170
Year of manufacture
2015
Condition
New/unused
Machine location
Degeberga
Country
Sweden
General grade
1
2
3
4
5
Mascus ID
66CC97E1

PRICING

Choose currency

DETAILS

Internal stock no.
60750ME
Transport weight
330 kg
Manufacturing / Serial number
27914
Production country
Italy
Documents
170120171543_2017_INTERFILARI_LD.pdf
Other information
The EL model is used for light tillage and weeding around vineyard and orchards rows and between plant stocks, even when plants are grown as clsoe as 40cm from each other. Its suitable for vineyards and orchards situated on slopes with loose, fine and medium soil, and on rocky terrain, but the rocks must not exceed 12cm. The hydraulic offset cultivator with rotary tines mounted on vertical axles, canbe applied to three point hoisters of ordinary 30-60 hp tractors, and is powered by the power takeoff through mechanical transmission. The machine is built in two working size with four rotary tine sets that measure 65 cm. And six tine sets that measure 100 cm, but with seven possible lengths of extension from the center of the tractor to the cultivator´s righthand outer extremity (90 / 115 / 140 / 170 / 200 / 225 / 260 cm). The rotors are powered by a chain and gears. The in and out movement that allows for plant sotcks to be avoided, works with a parallel arm system. The arms are supported by ball bearings hinged to the hoister frame and machine structure, additionally stabilized by a third bar on top in case of the models 200, 225 and 260, and the necessary drive is provided by an independent oil hydraulic system. The distributor command that allows for plant stocks to be avoided, is automatically triggered by a feeler pin. The emergency control can be mechanical, hydraulic, or electro-hydraulic. The angel for the rotor head is adjustable by means of a hydraulic jack operated directly from the driver´s seat. Its outer extremity can be raised of lowered to match the ground´s inclination. It supports wheels instead of skids. And alos has a double independent distributor to replace the single one for tractors without levers for the oil hydraulic system, and jointed on the third point for rocky terrain to cushion violent strokes. Model: EL170 Weight (kg): 330 Working Depth (m):0,05/0,10 Maximum Speed (km/h): 4 Tractor power: 22-30(hp) / 16-22(kw)Show more

Callenbring & CO AB

Julebodavägen 13 29795 Degeberga Skåne län Sweden
