Rinieri EB 1532 4

Price excl. VAT

Images5
Rinieri EB 1532 4 Front loader accessories
Rinieri EB 1532 4 Front loader accessories
Rinieri EB 1532 4 Front loader accessories
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product group
Front loader accessories
Brand / model
Rinieri EB 1532 4
Year of manufacture
2015
Condition
Demo
Machine location
Degeberga
Country
Sweden
General grade
1
2
3
4
5
Mascus ID
ED5802F0

PRICING

Choose currency

DETAILS

Internal stock no.
6EB15324
Accessory type
Hay Forks
Manufacturing / Serial number
28311
Transport weight
500 kg
Condition info/guarantee
Ingen
Production country
Italy
Other information

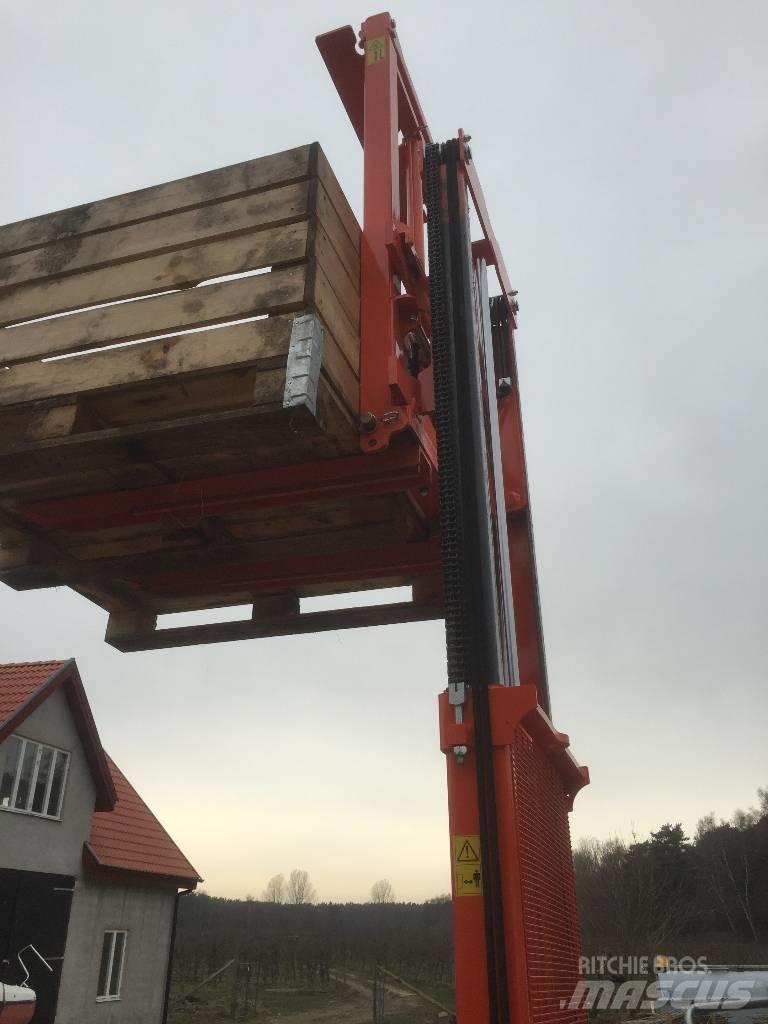

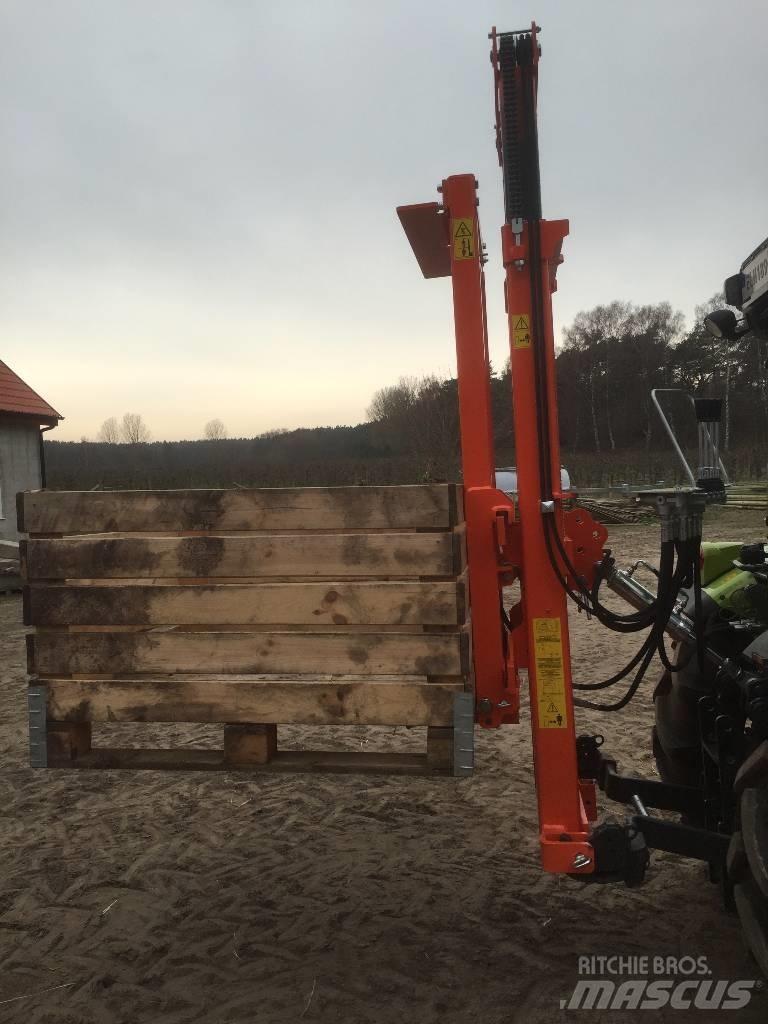

Elevators with hydraulic distributor are specially designed for tractors with three-point linkage through pivot and a shreaded arm. The elevator can function by means of distributor with levers. The needed thrust is setted on by the hydraulic system of the tractor. The elevation function is enabled by action on the hydraulic cylinder togheter with the vertical rods that make the truck slide through the chains. The elevator is equipped with reclining loading forks and security chain for the operator. On demand the folding bins locking is available, the cylinder for folding bins locking the cylinder for the tilting which replaces the threaded arm, the cylinder for the shifting. Specification: Capacity load Max (kg): 1500 Max Elevation (mm) : 3200 Max With (mm): 700 Total With (mm): 840 Side shifting (mm): 100-100 Coupling Height from the ground (mm): 500 Gripper Min. H / Max. H (mm) : 1400 / 2600 Overall dimensions of the mast installed on the tractor (mm): 2410 Hydraulic movements: Lifting + Tilting + Side shift + Bins lockingShow more

Callenbring & CO AB

Julebodavägen 13 29795 Degeberga Skåne län Sweden
